As attorney for the inventor of the innovative Scriptured Outdoor Furniture we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach Mr. Kroll at the contact numbers listed at the bottom of this page.

Objects of the present invention:

to provide outdoor scriptured furniture having an umbrella and chairs with scriptural passage imprinted thereon

to provide outdoor scriptured furniture including a table for attachment to the scriptural imprinted umbrella

to provide outdoor scriptured furniture having a swivel clamp forming an attachment for the umbrella to the table

to provide outdoor scriptured furniture that can be used for various outdoor activities including barbecues and beach visits

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS

10 present invention 38 locking pin

12 umbrella 40 support flange

14 scenic illustration 42 threaded member

16 biblical scripture 44 leg of table

18 chair 46 direction arrow

20 chair back 48 bushing

22 table 50 skirt

24 post 52 hook and loop material

26 clamp mechanism 54 snap

28 U-shaped clamp 56 seat back material

30 threaded element 58 mating hook and loop material

32 handle 60 tubular side

34 jaw 62 flap

36 swivel joint

PATENT DRAWINGS

FIGURE 1

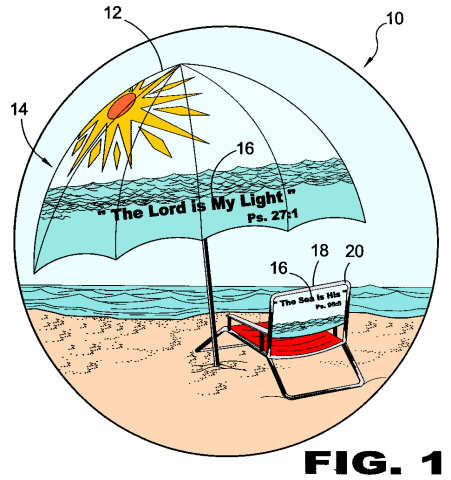

Figure 1 is an illustrative view of the present invention in use.

FIGURE 2

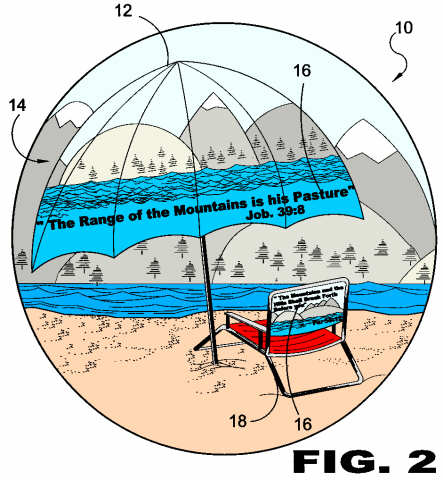

Figure 2 is an illustrative view of the present invention in use.

FIGURE 3

Figure 3 is an illustrative view of an additional element of the present invention.

FIGURE 4

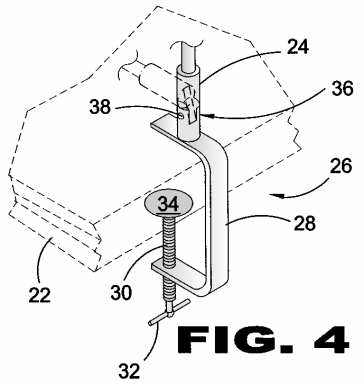

Figure 4 is a side view of the clamping mechanism of the present invention.

FIGURE 5

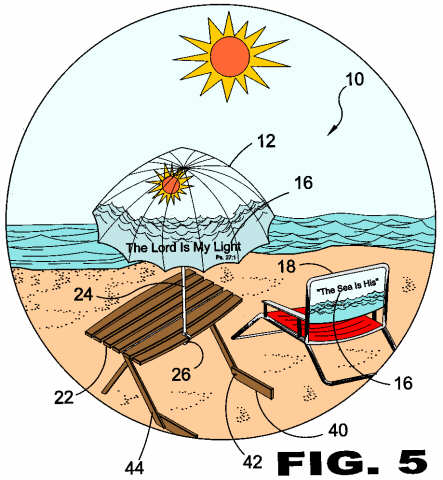

Figure 5 is a perspective view of the present invention with table support members.

FIGURE 6

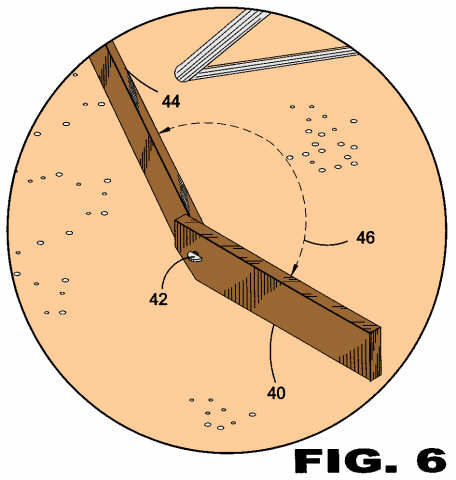

Figure 6 is an enlarged perspective view of the support members of the present invention.

FIGURE 7

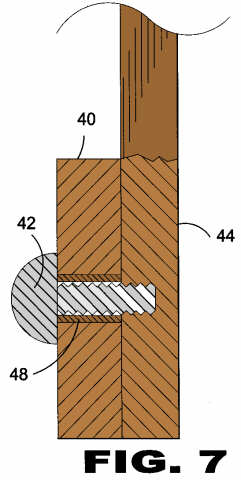

Figure 7 is a cutaway view of the fastening member of the rotatable table support member.

FIGURE 8

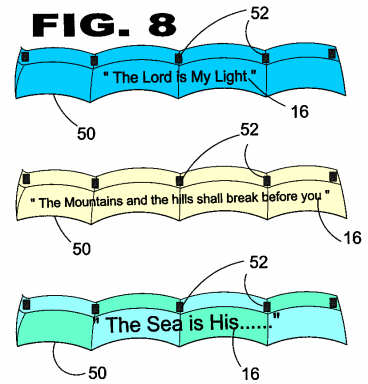

Figure 8 is a front elevation of an additional element for the umbrella of the present invention.

FIGURE 9

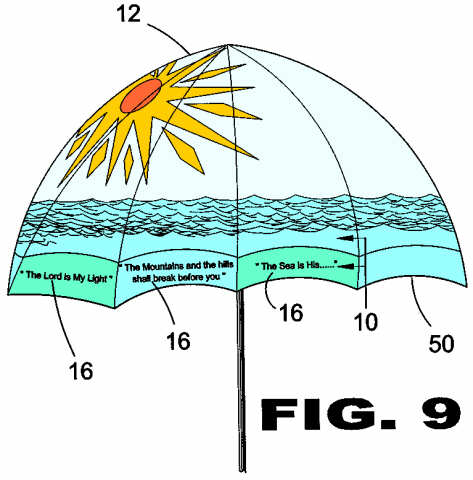

Figure 9 is a front elevation of a skirt having a plurality of biblical scripture imprinted thereon.

FIGURE 10

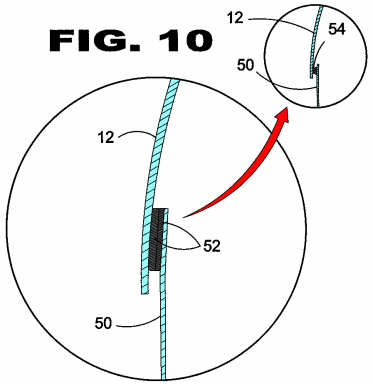

Figure 10 is a sectional view of the umbrella and skirt with hook and loop fastener.

FIGURE 11

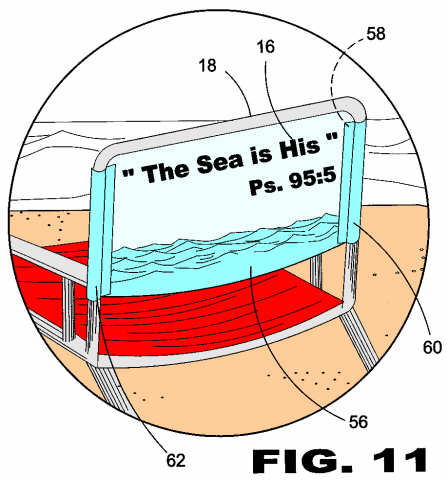

Figure 11 is a front elevation of an additional element for the chair of the present invention.

FIGURE 12

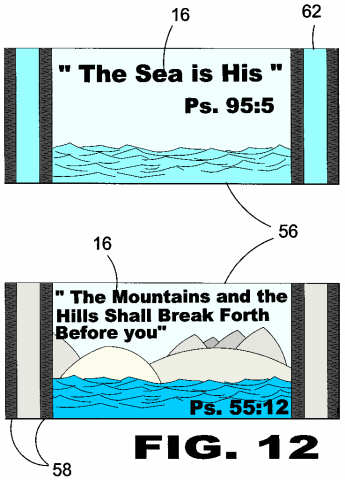

Figure 12 is a front elevation of decorative attachable/detachable seating backs having a plurality of biblical scripture imprinted thereon.
