Educational Audio/Visual Clock

Educational Audio/Visual Clock

*****Patent For Sale, Licensing, Manufacturing, and/or Investors*****

U.S. Patent : # 6,966,779

Inventor : Davidson Bachelor

invention uses

patent drawings

contact info

patent attorney

As attorney for the inventor of the innovative Educational Audio/Visual Clock we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.

Objects of the Educational Audio/Visual Clock:

to provide a fun, educational clock that teaches children about the early presidents of the United States of America

to provide an analog clock that consists of a clock housing, a digital liquid crystal date display, speakers, illuminated hands, pictorial display frames at every hour position and audio clips

to provide an analog clock that features the first 24 presidents of the United States of America in picture form with audio clips that play on the hour every hour

to provide an analog talking clock that contains audio clips containing the president's name, number he was in office, date of term and other relevant information regarding his term in office

to provide analog talking clocks that are supplied in a variety of sizes and shapes and are battery operated

to provide an analog clock that is simple and easy to operate and economical in cost to manufacture

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS

10 educational audio/visual clock 34 liquid crystal display (LCD)

12 clock face 36 power source

14 image plate 38 indicia

15 audio device 40 protective lens

16 speaker 42 audio message

18 illuminated hour hand 44 first set of images

20 illuminated minute hand 46 second set of images

22 light emitting diode (LED) 48 alarm

24 image window 50 battery

25 image 52 alarm set wheel

26 electro-magnetic module 54 time set wheel

28 gear box 56 LCD setting control

30 connecting member

PATENT DRAWINGS

FIGURE 1

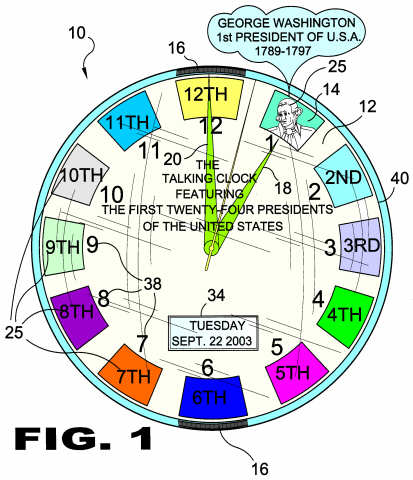

Figure 1 is a front view of the present invention in use.

FIGURE 2

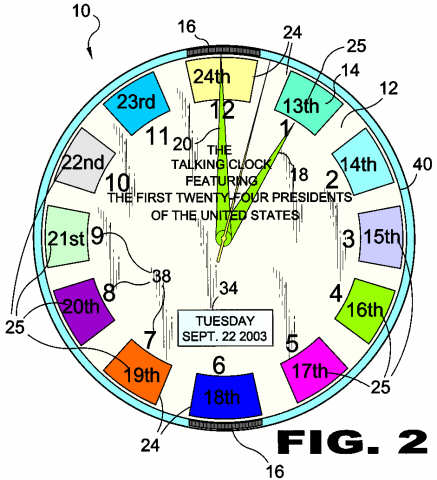

Figure 2 is a front view of the present invention.

FIGURE 3

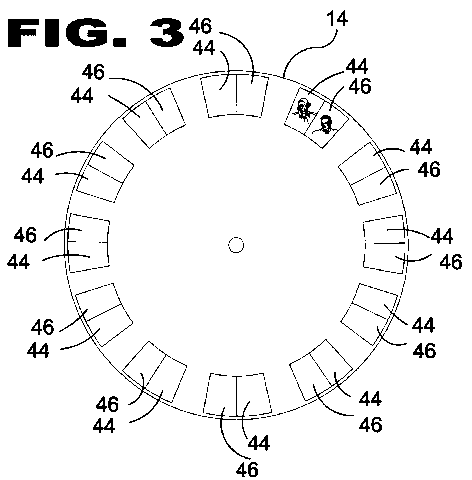

Figure 3 is a front view of the image plate of the present invention.

FIGURE 4

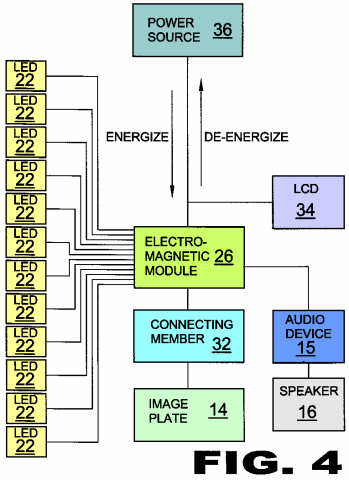

Figure 4 is a flow diagram of the movement of the presidential display.

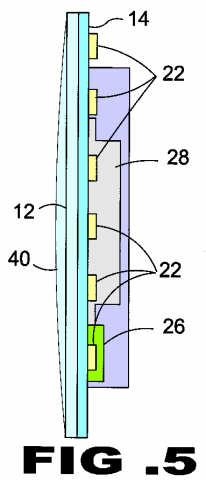

FIGURE 5

Figure 5 is a side view of the present invention.

FIGURE 6

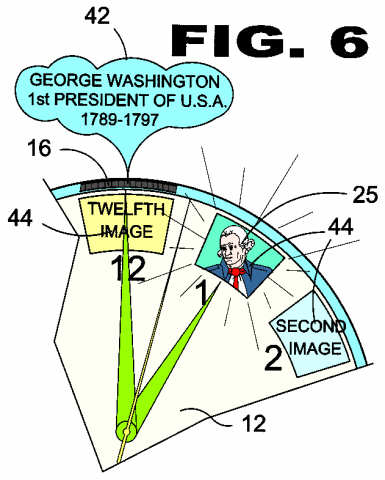

Figure 6 is a sectional view of the present invention.

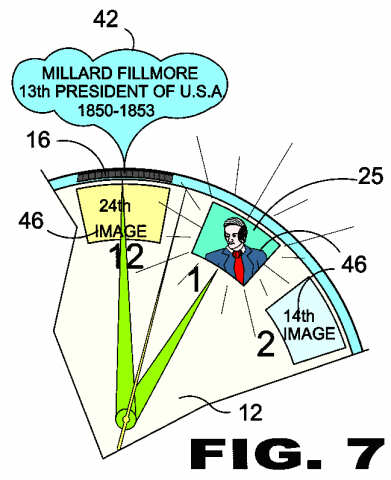

FIGURE 7

Figure 7 is a sectional view of the present invention.

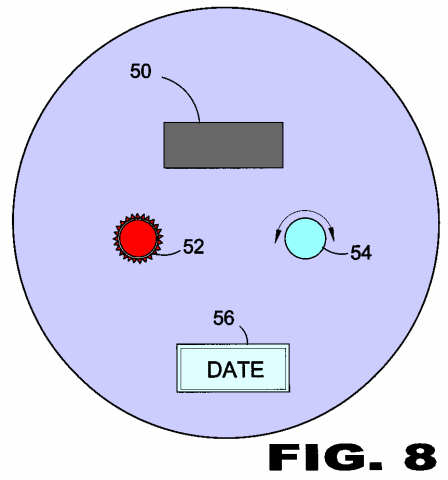

FIGURE 8

Figure 8 is a rear view of the present invention.

FIGURE 9

Figure 9 is a block diagram of the present invention.

FIGURE 10

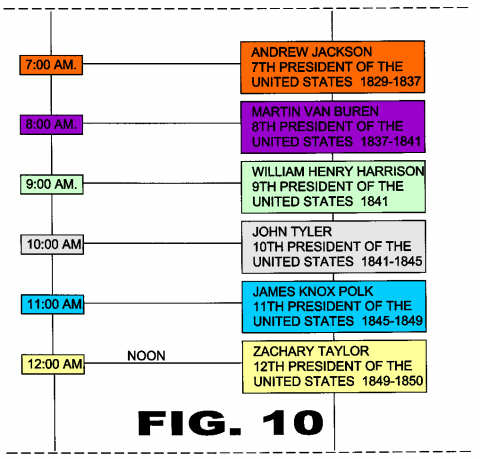

Figure 10 is a block diagram of the present invention.

FIGURE 11

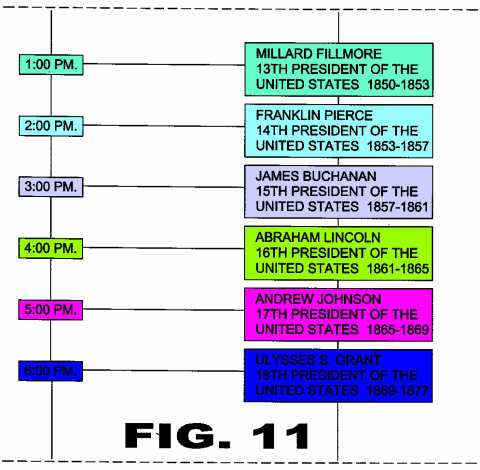

Figure 11 is a block diagram of the present invention.

FIGURE 12

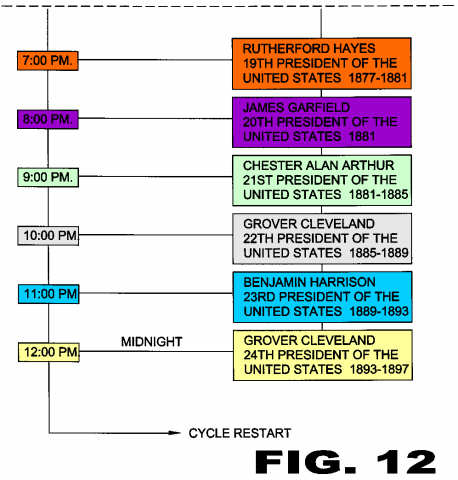

Figure 12 is a block diagram of the present invention.
