UNIQUE PORTABLE OVAL SHAPES BLIND FOR DOORS WITH GLASS AND WINDOWS

*****New Product For Sale or Licensing*****

The following patent is currently for sale or license by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page.



This newly invented ever ready portable blind is self installed. The frame is made the same dimension only of the glass being covered! Example: doors that have oval shape glass in the middle or any windows of another shapes,this style blind is mounted by easily pressing onto the glass only. The blind is sized to be fitting within your window frame! Having a window with moon shape in my door, this custom blind cover is necessary especially with the evening light on. Being portable it can be selective dismounting "On or Off"as desire! All blinds can be made of many different materials.Opening and closing is achieved by using the center bar controlling the blind slots.

A solution for those of us who have been waiting this kind of mini custom blind to be designed and now, it is available for a Company to buy this unique new patent.

Thank you!

Portable Blind Device Portable Blind Device
Click here for additional Zinblinds catalog pictures.

Additional Presentation
invention uses
patent drawings
catalog pictures
contact info
patent attorney
 U.S. Patent :8,496,039

Inventor : Vincenza Barresi



The present invention aims to provide a portable blind that is mounted onto the glass of any shape door or window without the necessity of putting holes, or drilling nails into doors, walls or windows. The portable blind is made in a frame that has the same dimensions as the glass being covered and is easily pressed and mounted on the glass within the existing door or window frame. The blind is fully operational allowing light to enter during the day and privacy during the night. Opening and closing of the invention is easily achieved using the center bar mechanism that controls the blind slats. The invention has a group of chosen fasteners including suction cups, double faced tape, Velcro or magnets. The invention can be selectively dismounted for maintenance, cleaning and re-positioning.

As attorney for the inventor of the innovative new Portable Blind For Doors With Glass Or Windows we are currently seeking investors and manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.

Portable Blind DevicePortable Blind Device

Invention Objects & Goals

  • to provide a portable operational privacy press on portable blind that is easily installed and removed for maintenance, painting, repositioning, etc.

  • to provide a portable operational privacy press on portable blind that allows light in when opened and provides privacy when closed

  • to provide a portable operational privacy press on portable blind that is easily operated utilizing the center bar mechanism which controls the opening and closing of the blind slats

  • to provide a portable operational privacy press on portable blind having one or more fasteners taken from the group of suction cups, double faced tape, clips, Velcro and magnets

  • to provide a portable operational privacy press on portable blind that can be made to fit any size door or window

  • to provide a portable operational privacy press on portable blind that can be made of any desired material

  • to provide a portable operational privacy press on portable blind that is easy to use and operate

Patent Drawings

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS
10 present invention 32 hook and loop fastening element
12 glass 34 magnet
14 door 36 double sided tape
16 window 38 casement window
18 frame of 10 40 double hung window
20 user 42 attachment means of 26
22 slats 44 slat pivot
24 releasable fastener 46 frame housing
26 operating rod 50 pivoting handle
28 drawstring 52 clip
30 suction cup 54 bottom window of 40

patent drawing

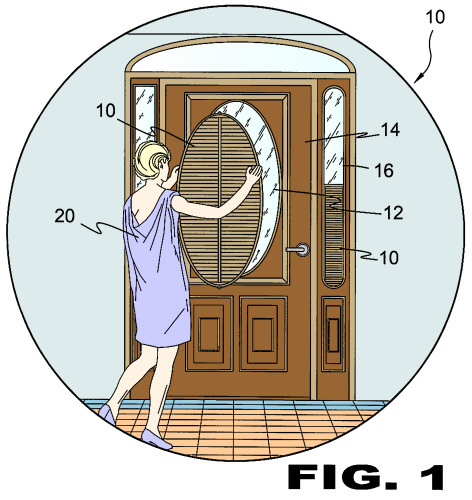

FIGURE 1

Figure 1 is an illustrative view of the portable operational privacy press on glass-cover blind.

patent drawing

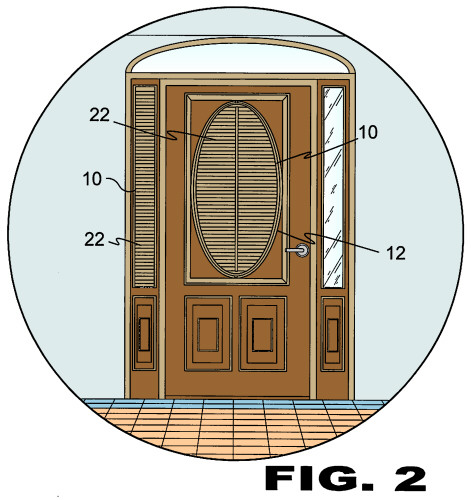

FIGURE 2

Figure 2 is an illustrative view of the portable operational privacy press on glass-cover blind pressed on glass, in use.
patent drawing

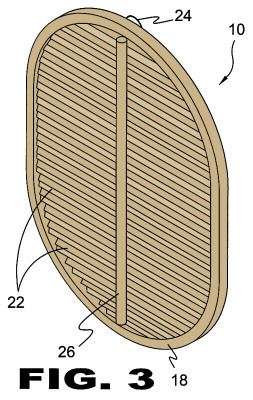

FIGURE 3

Figure 3 is a perspective view of the invention pressed on glass.

patent drawing

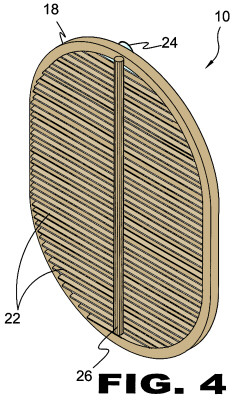

FIGURE 4

Figure 4 is a perspective view of the invention in an open position.

patent drawing

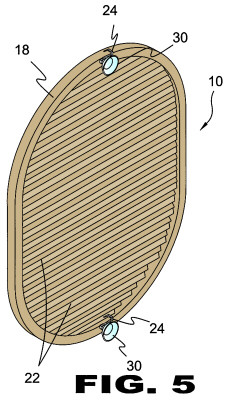

FIGURE 5

Figure 5 is a perspective view of the mounting side of the glass cover blind.

patent drawing

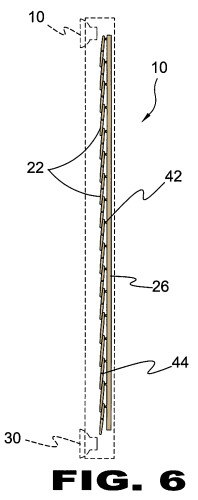

FIGURE 6

Figure 6 is a side view of the invention in a closed position.

patent drawing

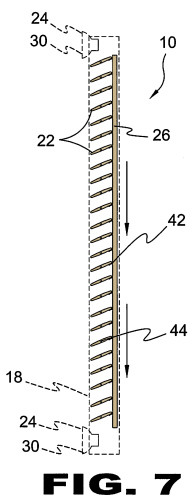

FIGURE 7

Figure 7 is a side view of the invention in an open position.

patent drawing

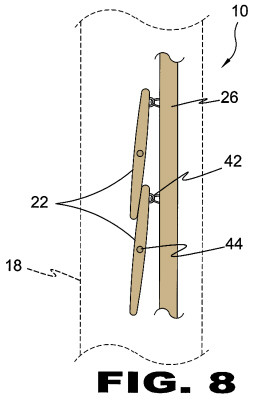

FIGURE 8

Figure 8 is an enlarged partial view of the blind mini-slats in a closed position.

patent drawing

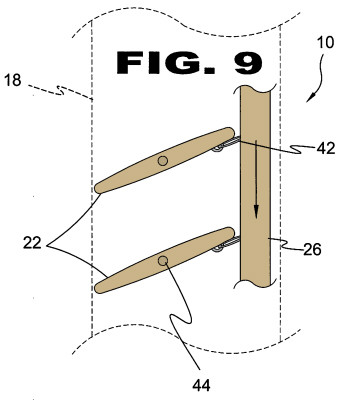

FIGURE 9

Figure 9 is a detailed view of the present invention in an open position.

patent drawing

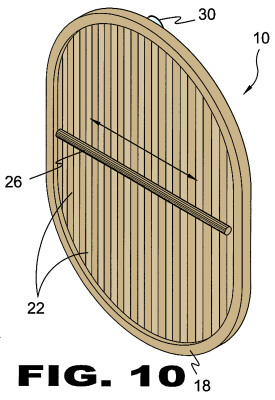

FIGURE 10

Figure 10 is an alternate orientation of the mini slats within the door-glass blind.

patent drawing

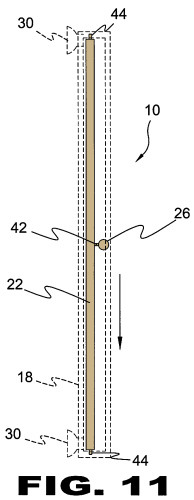

FIGURE 11

Figure 11 is a sectional view of the vertically oriented privacy glass-cover blind slats.
patent drawing

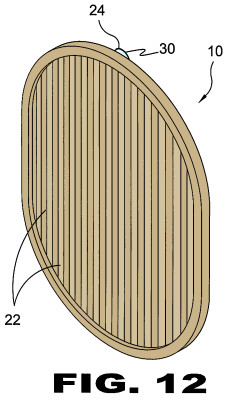

FIGURE 12

Figure 12 is an alternate glass-cover blind of the present invention.
patent drawing

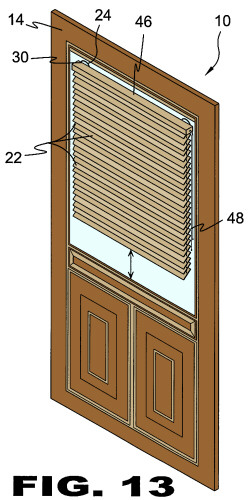

FIGURE 13

Figure 13 is an alternate door-glass window shape of the present invention.

patent drawing

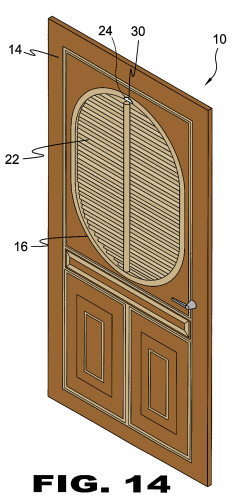

FIGURE 14

Figure 14 is an alternate door-glass window shape of the present invention.

patent drawing

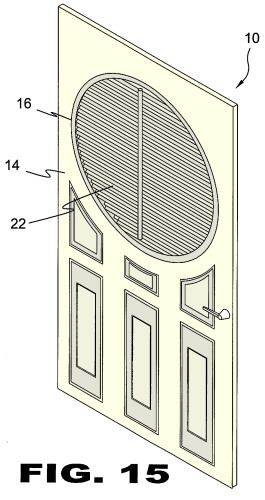

FIGURE 15

Figure 15 is an alternate door-glass window shape of the present invention.

patent drawing

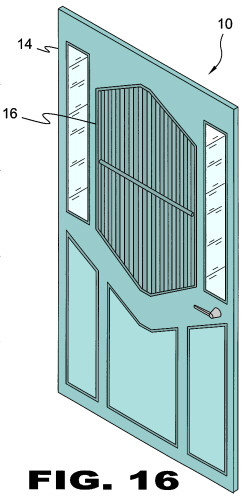

FIGURE 16

Figure 16 is an alternate door-glass window shape of the present invention.

patent drawing

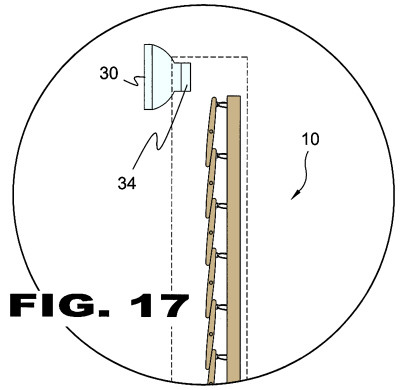

FIGURE 17

Figure 17 is an alternate means of attachment of the door-glass blind.

patent drawing

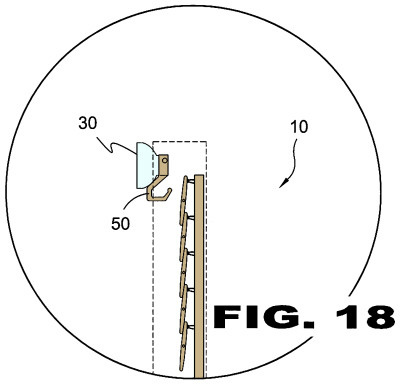

FIGURE 18

Figure 18 is an alternate means of attachment of the door-glass blind.

patent drawing

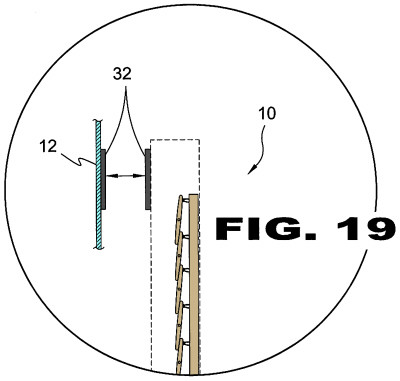

FIGURE 19

Figure 19 is an alternate means of attachment of the door-glass blind.

patent drawing

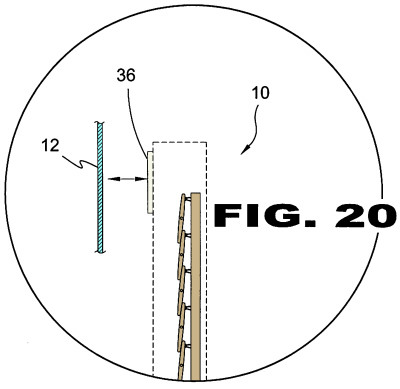

FIGURE 20

Figure 20 is an alternate means of attachment of the door-glass blind.

patent drawing

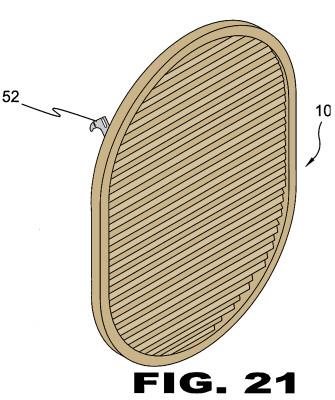

FIGURE 21

Figure 21 is an alternate means of attachment of the door-glass blind.
patent drawing

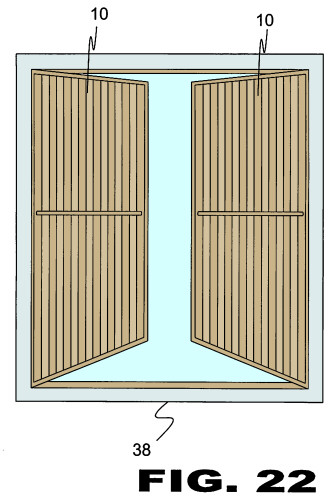

FIGURE 22

Figure 22 is an alternate window glass style having the present invention applied.

patent drawing

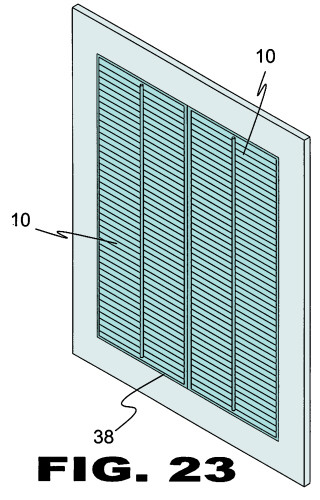

FIGURE 23

Figure 23 is an alternate press on privacy window-glass style having the present invention applied.

patent drawing

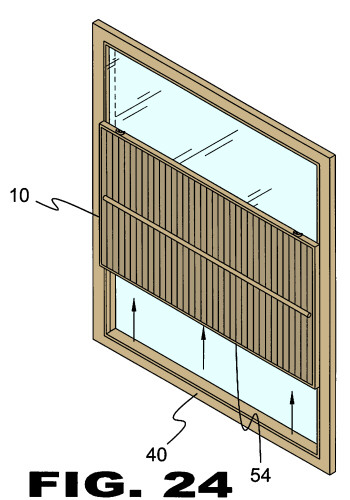

FIGURE 24

Figure 24 is an alternate window-glass style having the present invention applied.

patent drawing

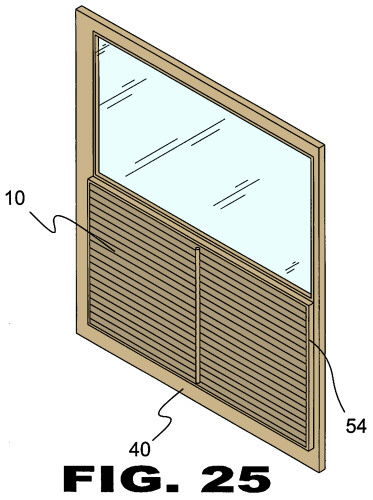

FIGURE 25

Figure 25 is an alternate window-glass style having the present invention applied.
