Protective Impact Absorbing Helmet

*****Patent For Sale, Licensing, Manufacturing, and/or Investors*****

patent drawing U.S. Patent : # 6,842,914

Inventor : Fred Broadway

invention uses
patent drawings
contact info
virtual prototype
patent attorney

patent drawing
protective helmet protective helmet

As attorney for the inventor of the innovative Protective Impact Absorbing Helmet we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach Mr. Kroll at the contact numbers listed at the bottom of this page.


Objects of the present invention:

  • to provide a helmet that can be used during sporting events and play to protect the back of the head from impact

  • to provide an impact absorbing helmet having a convex shape for engaging the back of the head

  • to provide an impact absorbing helmet having an exterior surface comprised of an impact absorbing material

  • to provide an impact absorbing helmet that will dissipate a blow across the structure of the helmet and have an interior shock absorbing material to prevent transfer of the blow to the head

  • to provide an impact absorbing helmet that will engage the user's head preventing random movement during use

  • to provide an impact absorbing helmet having means for retaining the selective positioning of the helmet and a strap for engaging the front of the head

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.


LIST OF REFERENCE NUMERALS
10 present invention 22 forehead headband
12 posterior position24 top of head headband
14 head 26 logo
16 impact area28 means for adjustment
18 user 30 liner
20 helmet

PATENT DRAWINGS
patent drawing

FIGURE 1

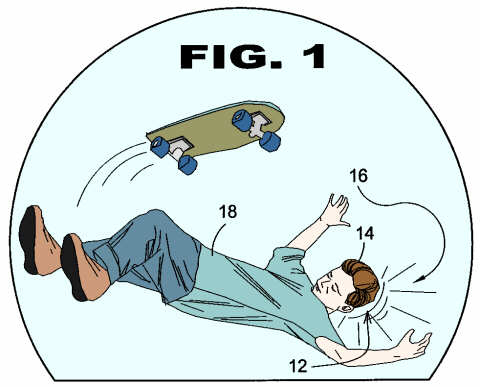

Figure 1 is an illustrative view of the prior art.

patent drawing

FIGURE 2

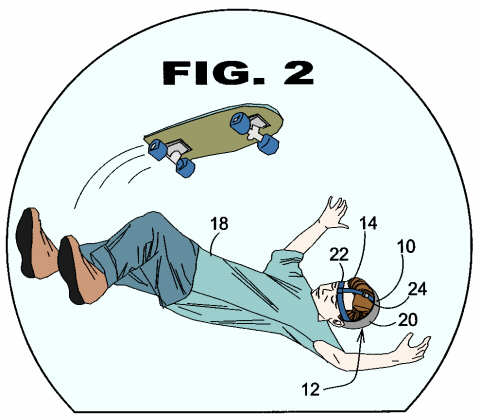

Figure 2 is an illustrative view of the present invention in use.

patent drawing

FIGURE 3

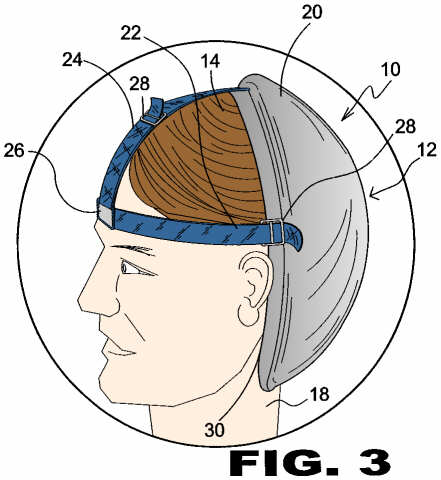

Figure 3 is a side view of the present invention in use.

patent drawing

FIGURE 4

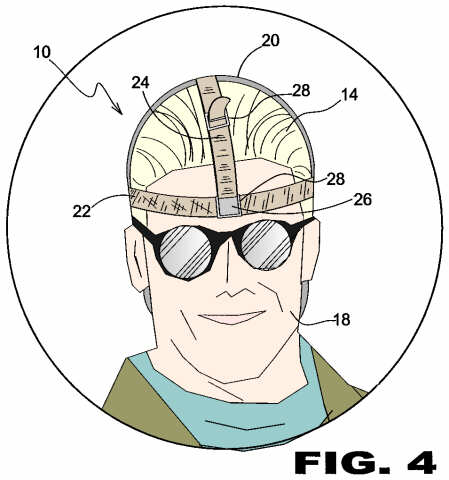

Figure 4 is a frontal view of the present invention in use.

patent drawing

FIGURE 5

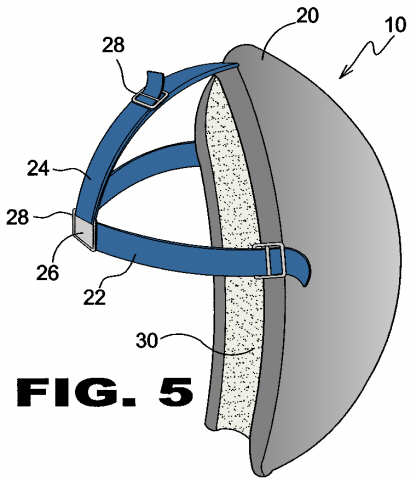

Figure 5 is a perspective view of the present invention.

patent drawing

FIGURE 6

Figure 6 is a rear view of the present invention.

patent drawing

FIGURE 7

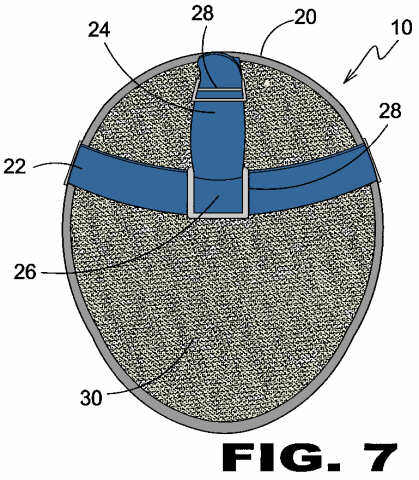

Figure 7 is a front view of the present invention.

patent drawing

FIGURE 8

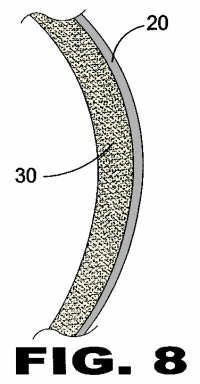

Figure 8 is a sectional view of the present invention.
