Extendable Wet Saw Water Shield

Extendable Wet Saw Water Shield

*****Patent For Sale, Licensing, Manufacturing, and/or Investors*****

U.S. Patent : # 6,796,890

Inventor : Edward K. Goldrick

invention uses

patent drawings

contact info

patent attorney

NEW!!
Click here for an exciting new presentation
of the invention as a virtual prototype.

As attorney for the inventor of the innovative Extendable Wet Saw Water Shield we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.

Objects of the present invention:

to provide a wet saw water shield that will control and contain the overspray kicked out from the rotation of a wet saw blade

to provide an expandable wet saw water shield that will allow a contractor, homeowner or any person operating a wet saw to work in close proximity to the work area, such as an interior location with finished floors

to provide an expandable wet saw water shield that traps and contains any excess fluid in a recycling trough where it may be returned to the saw unit

to provide an expandable wet saw water shield that will reduce job costs by reducing the amount of time and distance needed to travel back and forth from the saw to the work area for each cut

to provide an expandable wet saw water shield that is lightweight and portable

to provide an expandable wet saw water shield that is adjustable in height and width and may be adapted to be used in conjunction with various sized tables and saws

to provide an expandable wet saw water shield that is inexpensive to manufacture and operate

to provide an expandable wet saw water shield that is simple and easy to use

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS

10 present invention 48 spring loaded roller

12 wet saw extendable retractable cover 50 spring

14 first side of cover 52 hook

16 second side of cover 54 waterproof light fixture

18 first side abutment member 56 water pump with self activating float

20 second side abutment member 60 telescoping legs

22 tongue of cover 62 extendable member

24 first groove of cover 64 receiving member

26 second groove of cover 66 throughbore

28 first trough section 68 fastening element

30 second trough section 70 wet saw

32 tongue of trough 72 wet saw

34 trough rubber seal 74 wet saw stand

36 trough channel 76 wet saw blade

38 facing of shield 78 fluid

40 interior wall of shield 80 waterproof light

42 exterior wall of shield 82 overspray

44 backsplash housing 84 pump

46 backsplash 86 pump actuator

PATENT DRAWINGS

FIGURE 1

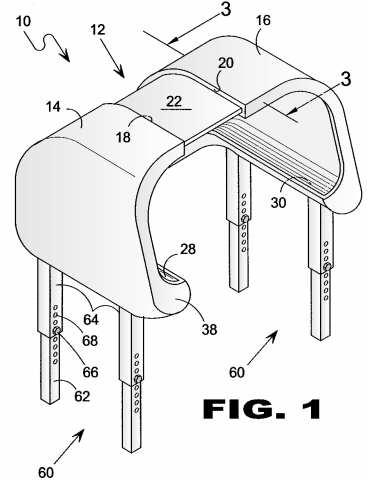

Figure 1 is a perspective view of the present invention.

FIGURE 2

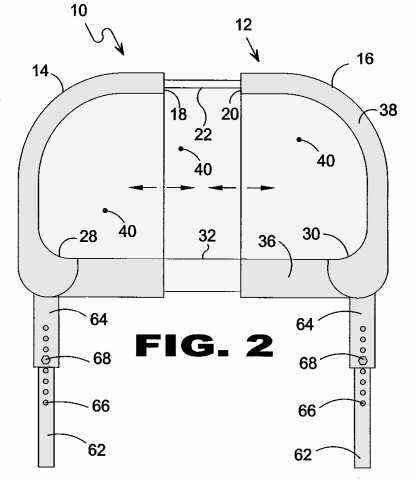

Figure 2 is a front view of the present invention.

FIGURE 3

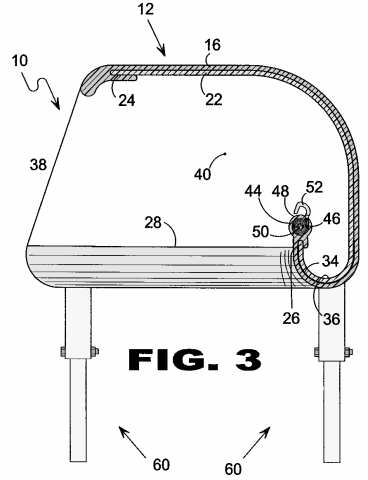

Figure 3 is a sectional side view of the present invention.

FIGURE 4

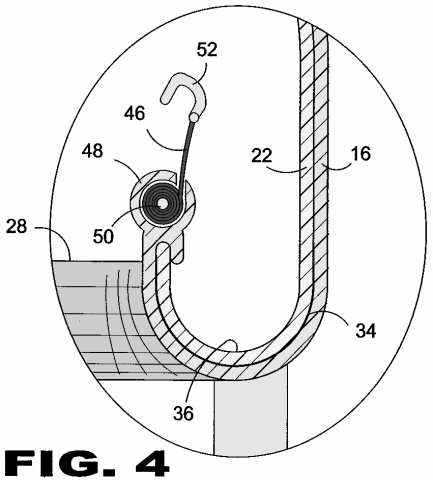

Figure 4 is a detailed sectional side view of the retractable backsplash assembly.

FIGURE 5

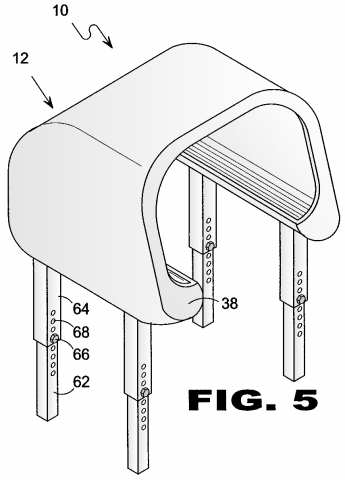

Figure 5 is a perspective view of the present invention.

FIGURE 6

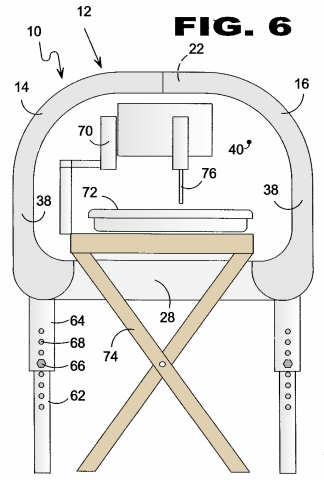

Figure 6 is a front view of the present invention.

FIGURE 7

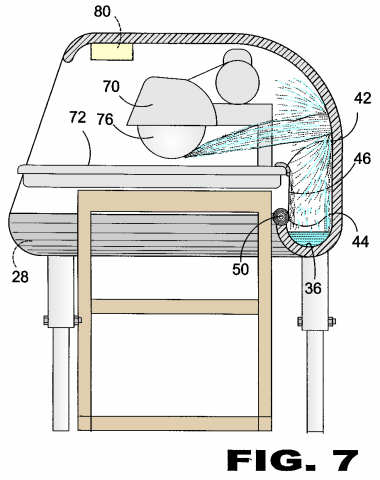

Figure 7 is a sectional side view of the present invention in use.

FIGURE 8

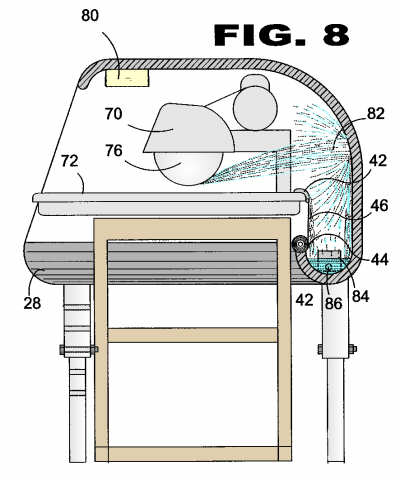

Figure 8 shows a sectional side view of an additional element of the present invention.
