| Tinted Polarized Window Film |
*****New Product For Licensing, Manufacturing, and/or Investors*****
As attorney for the inventor of the innovative Tinted Polarized Window Film we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.
The present invention discloses a polarized filter film having a plurality of light-filtering layers each having a different polarization aperture and tint hue that can be selectively combined to form a polarized filter film having a combined opacity rating of 5% to 55% when applied to a transparent medium such as a window.
Objects of the present invention:
- to provide a polarized filter film of tinted polarized light-filtering layers
- to provide a polarized filter film of tinted polarized light-filtering film layers that can be selectively applied to a window as a single film providing an opacity of 5% to 55%
- to provide a polarized filter film of tinted polarized light-filtering material comprised of a plurality of filter films having different aperture alignment
- to provide a colored polarized filtering film comprised of a plurality of film layers having different aperture alignment that when used in conjuction with other filter films will vary the amount of filtered light passing through the polarized filtering film
- to provide colored polarized filtering film comprised of a polarity of film layers forming a polarized filtering film with an opacity rating of 5% to 55% whereby a user can select the degree of light filtering to apply to a window
- to provide colored polarized filtering film comprised of a plurality of filter films bonded adhesively forming a single polarized filtering film having an opacity of 5% to 55% and a variety of tinted hues determined by the combination of primary colors
- to provide colored polarized filtering film having an adhesive layer on one face of the light-filtering material
- to provide colored polarized filtering film having an adhesive layer on one face of the light-filtering material with a peelable protective layer thereon
- to provide a polarized filter film having an adhesive layer that when applied to a transparent medium will cure to a full adhesive state in approximately 72 hours
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 present invention |
28 frame |
| 12 vehicle | 30 adhesive |
| 14 windshield |
32 polarizing film |
| 16 side window | 34 backing |
| 18 transparent medium |
36 vertical apertures |
| 20 first polarization layer | 38 angular apertures |
| 22 second polarization layer |
40 first layer |
| 24 third polarization layer | 42 second layer |
| 26 patio door window |
44 combined layer |
|
| PATENT DRAWINGS |
 |

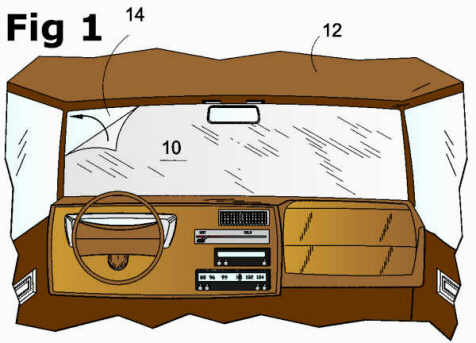

| FIGURE 1 Figure 1 is a perspective view of one use of the present invention installed on a motor vehicle.
|
 |

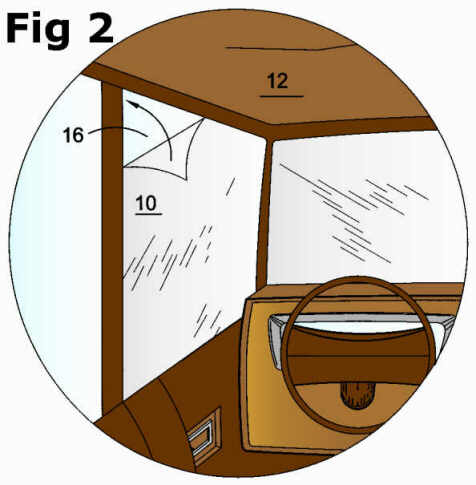

| FIGURE 2 Figure 2 is a perspective view of one use of the present invention installed on a motor vehicle. |
 |

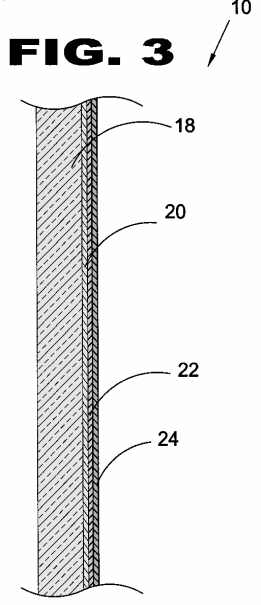

| FIGURE 3 Figure 3 is a cross section view of the present invention. |
 |

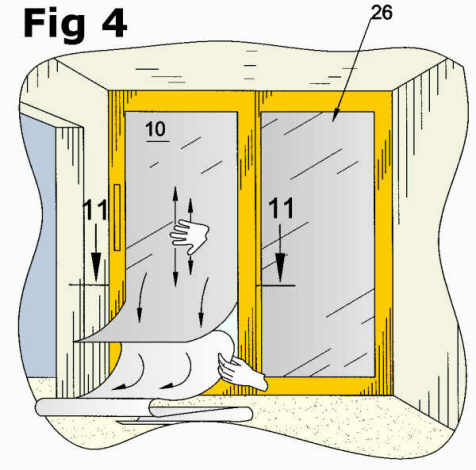

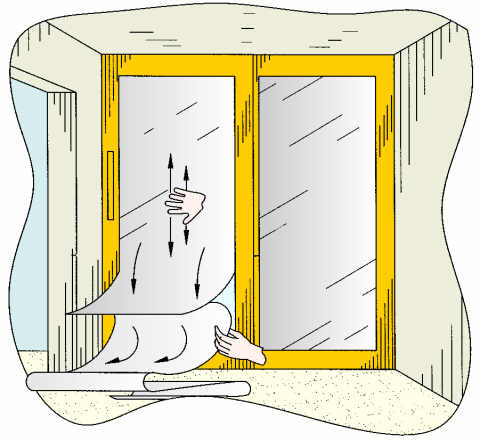

| FIGURE 4 Figure 4 is a perspective view of another application of the present invention installed on a patio door. |
 |
| FIGURE 5 Figure 5 is a cross section view of the present invention. |
 |

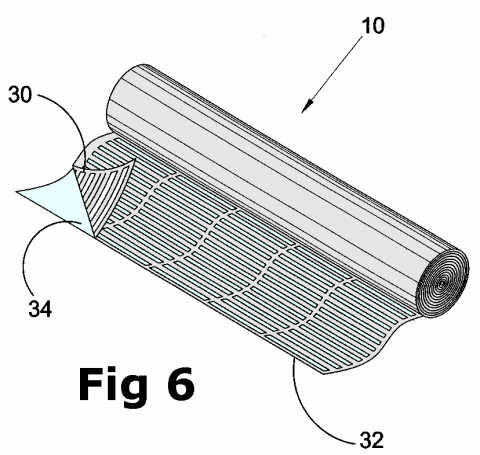

| FIGURE 6 Figure 6 is a perspective view of the present invention. |
 |

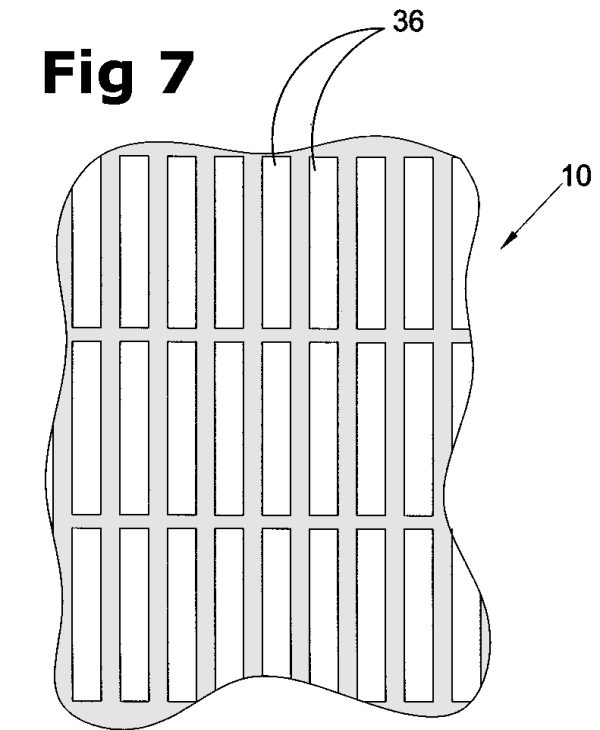

| FIGURE 7 Figure 7 is a front view of the present invention. |
 |

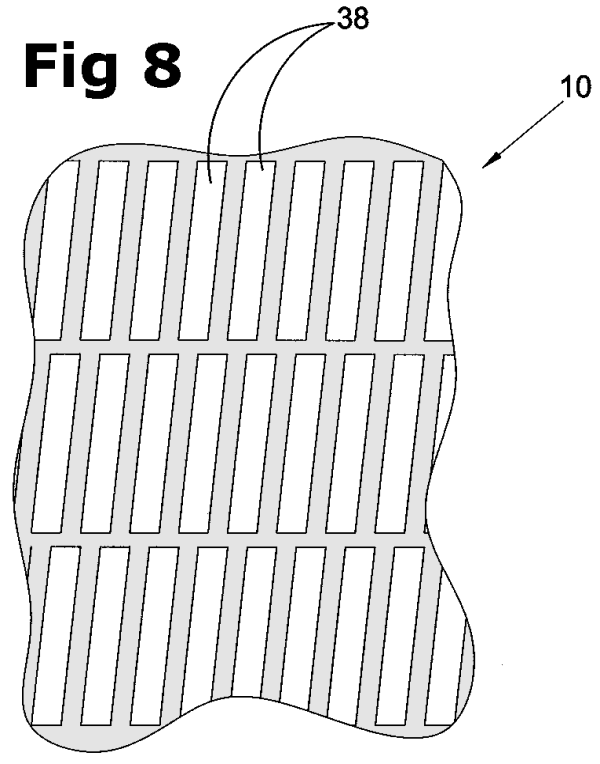

| FIGURE 8 Figure 8 is a front view of the present invention. |
 |

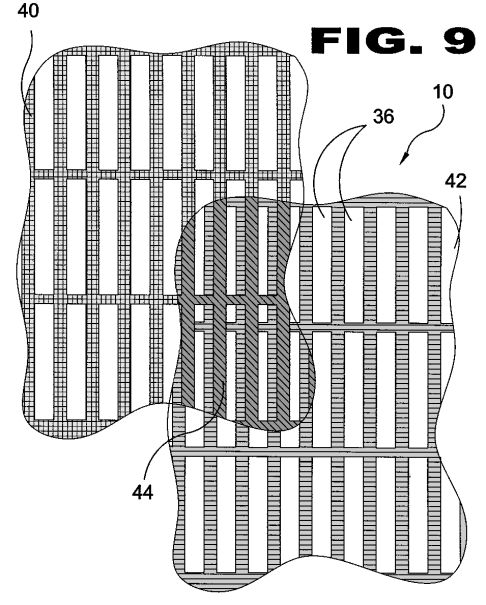

| FIGURE 9 Figure 9 is a front view of the present invention. |
 |

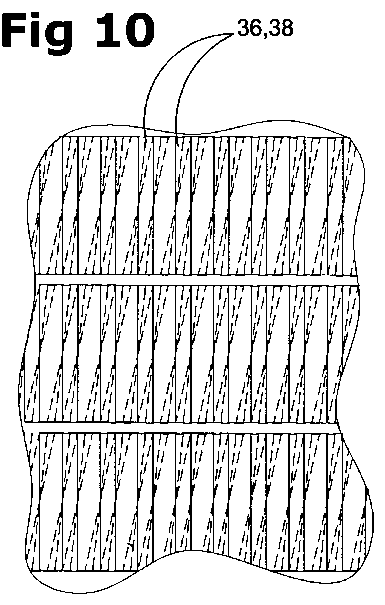

| FIGURE 10 Figure 10 is a front view of the present invention. |
 |

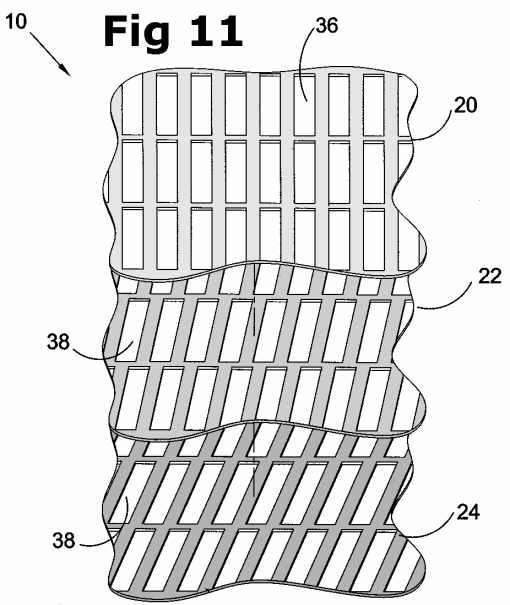

| FIGURE 11 Figure 11 is an exploded view of the present invention. |
|
