U.S. Patent : # 7,051,472 Inventor : James L. Kelly invention uses patent drawings contact info patent attorney

As attorney for the inventor of the innovative new Multi-Sensor Animal Trap we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.

The present invention is an animal trap that can be accommodating to the capture of various types of animals including rodents, snakes, reptiles, insects, mollusks, fish squirrels, mammals, invertebrates and vertebrates.

Objects of the present invention: to provide a multi-sensor animal trap having a plurality of sensors that will detect when prey has entered and activate a door-closing mechanism to contain the animal therein to provide a multi-sensor animal trap having a plurality of interlocking trap components to provide a multi-sensor animal trap wherein each trap member includes an entry door and exit door selectively opened and closed to provide a multi-sensor animal trap that includes a laser sensor that will detect when prey has approached the bait and will activate the door-closure mechanism to provide a multi-sensor animal trap having redundant power supplies including batteries and solar panels to provide a multi-sensor animal trap having a heating element in communication with said bait hanger for heating the bait in order to increase the odiferous properties of the bait to provide a multi-sensor animal trap that is simple and easy to use to provide a multi-sensor animal trap that is economical in cost to manufacture and operate

The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.

LIST OF REFERENCE NUMERALS 10 present invention 44 heated bait hanger 12 rodent 46 pressure sensitive pad 14 snake 48 laser sensor 16 reptile 50 solar panel 18 insect 52 door track 20 mollusk 54 connecting slot 22 fish 56 heater wire 24 squirrel 58 release cage 26 mammal 60 sensor assembly 28 invertebrate 62 bait 30 vertebrate 64 animal 32 main housing 66 odor 34 screen 68 front door/rear trap sensor 36 front door 70 wiring to sensor 38 rear door 72 spring locking element 40 power source 74 spring mechanism 42 heating element

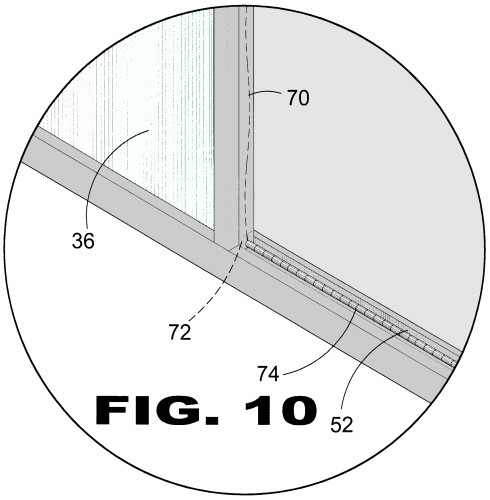

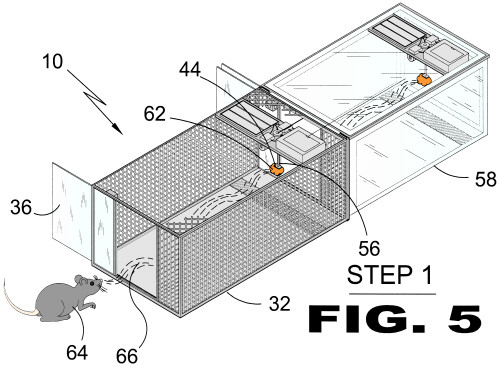

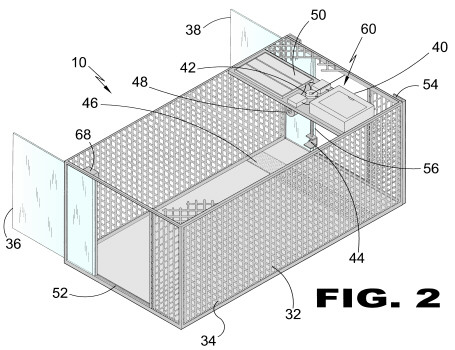

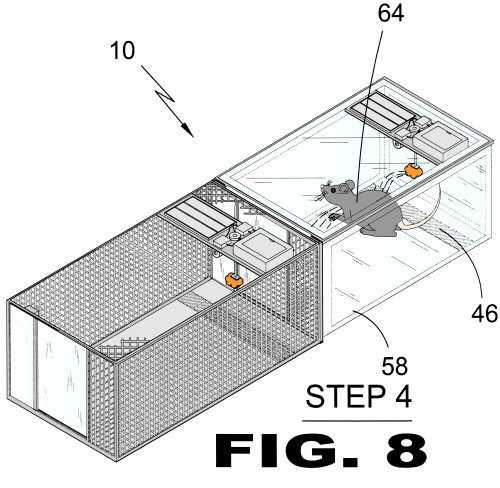

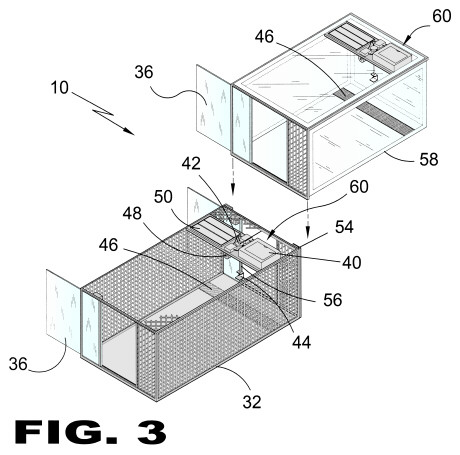

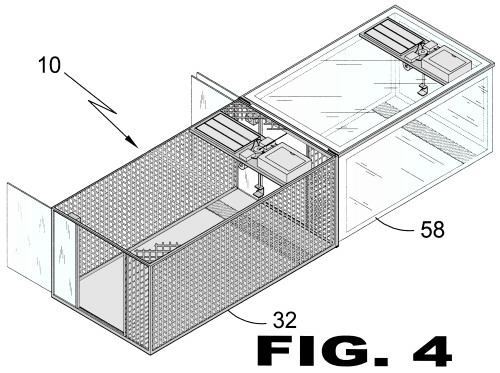

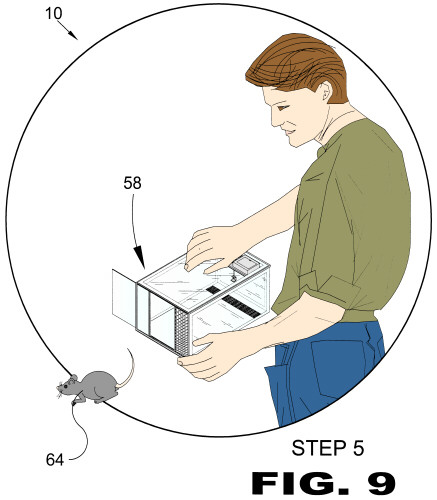

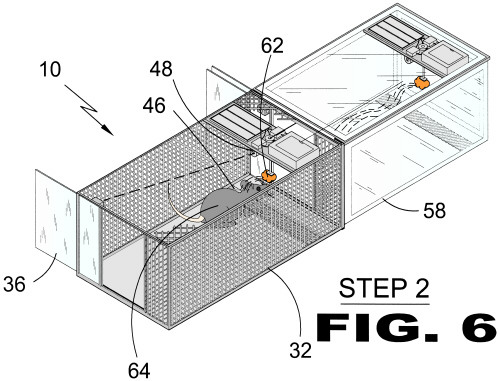

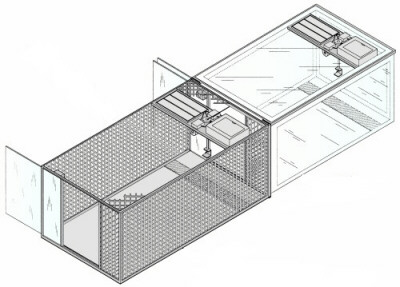

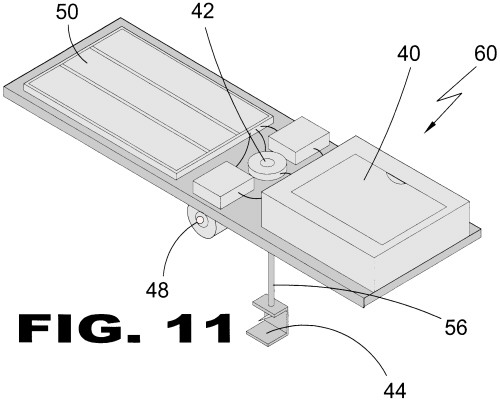

PATENT DRAWINGS FIGURE 1 Figure 1 is an illustrative view of the uses for the present invention. FIGURE 2 Figure 2 is a perspective view of the invention. FIGURE 3 Figure 3 is a trap member and release trap of the invention. FIGURE 4 Figure 4 is a trap member and release trap interconnected. FIGURE 5 Figure 5 is an illustrative view of step 1 in the use of the invention. FIGURE 6 Figure 6 is an illustrative view of step 2 in the use of the invention. FIGURE 7 Figure 7 is an illustrative view of step 3 in the use of the invention. FIGURE 8 Figure 8 is an illustrative view of step 4 in the use of the invention. FIGURE 9 Figure 9 is an illustrative view of step 5 in the use of the invention. FIGURE 10 Figure 10 is a detailed view of the door portion of the invention. FIGURE 11 Figure 11 is a detail view of the sensor assembly.
