New Invention

Tandem Movie Lounge

*****New Product For Sale, Licensing, and/or Investors*****

The following patent is currently for sale by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page.

U.S. Patent : # 6,604,790

Inventor : Stanley L. Murkey Sr.

As attorney for the inventor of the innovative Tandem Movie Lounge we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.

Objects of the present invention:

to provide a chair that provides both upper and lower seating in tandem
to provide a pop up footrest for the lower seating position
to provide a reclining backrest for the upper seating position
to provide a food/beverage receptacle
to provide an optional backrest for the lower seating to provide back support to a person sitting in the lower seating area
to provide operating handles to control the pop up footrest and optional reclining backrest
to provide a receptacle fot a remote control to control a television or VCR
to provide a paper towel dispenser to allow one to have access to paper towels to clean ones face or hands

Now for the first time this unique product is available for millions of potential users.

PATENT DRAWINGS

FIGURE 1

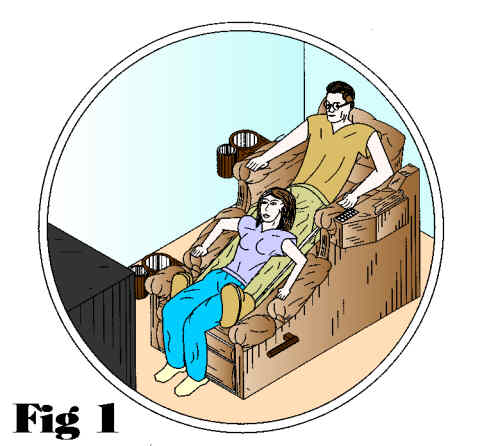

Figure 1 is an isometric view of the present invention with two occupants seated in tandem.

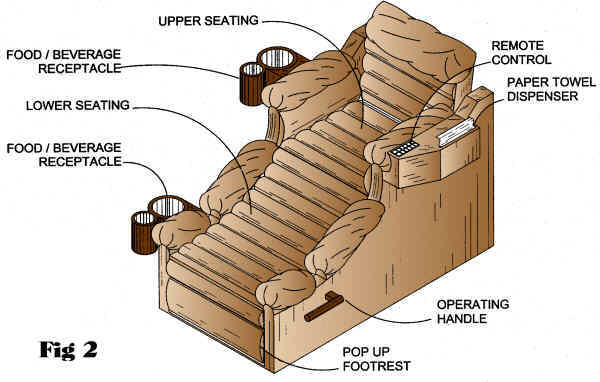

FIGURE 2

Figure 2 is an isometric view of the present invention showing the present invention having both upper seating and lower seating to accommodate the seating of two people at a time.

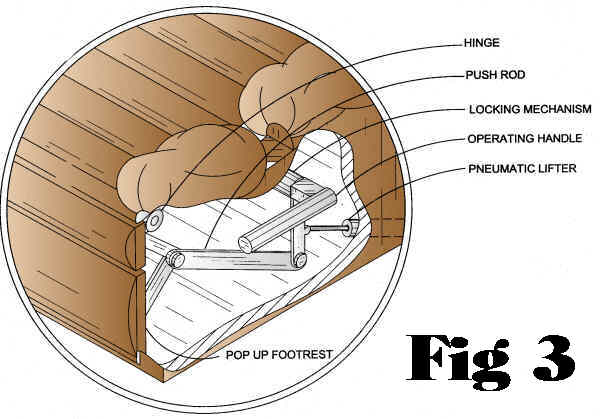

FIGURE 3

Figure 3 is a cut away view of the present invention showing the internal components of the pop up footrest in the retracted position.

FIGURE 4

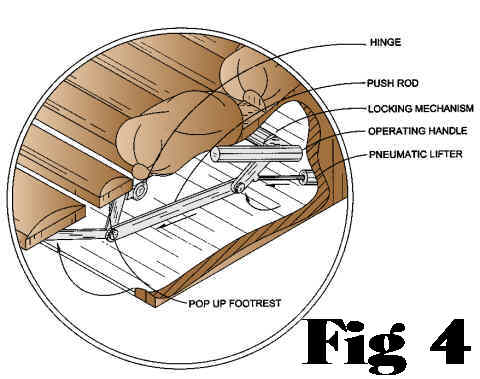

Figure 4 is a cut away view of the present invention showing the internal components of the pop up footrest in the extended position. Also shown are arrows to indicate the movement of the pop up footrest's internal components when moving from the retracted position to the extended position.

FIGURE 5

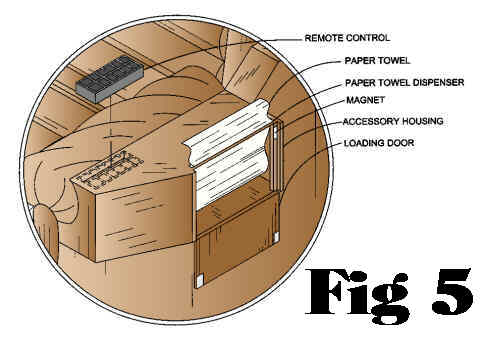

Figure 5 is an isometric view of the present invention, showing the placement and relationships between the components of the paper towel dispenser. Also shown is a loading door in the open position so that additional paper towels may be placed inside if they run out, and so that miscellaneous items may be stored within the dispenser interior.

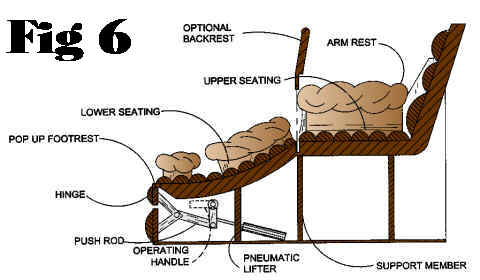

FIGURE 6

Figure 6 is a sectional side view of the present invention showing one possible frame construction for the present invention having an extendable retractable footrest and an optional backrest for the lower seat.

FIGURE 7

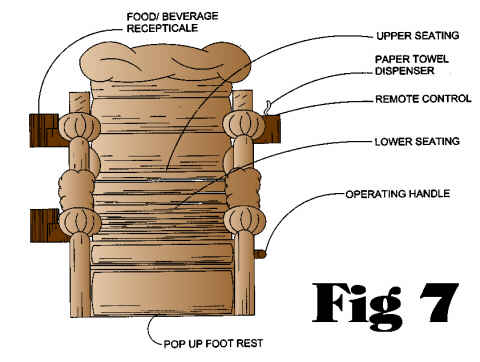

Figure 7 is a front view of the present invention.

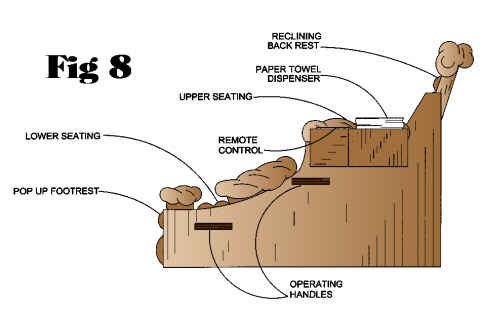

FIGURE 8

Figure 8 is a side view of an alternate embodiment having an additional element in the form of a reclining backrest. Also shown is the backrest operating handle in the closed position. The lower handle controls the footrest. The upper handle controls the reclining backrest.

FIGURE 9

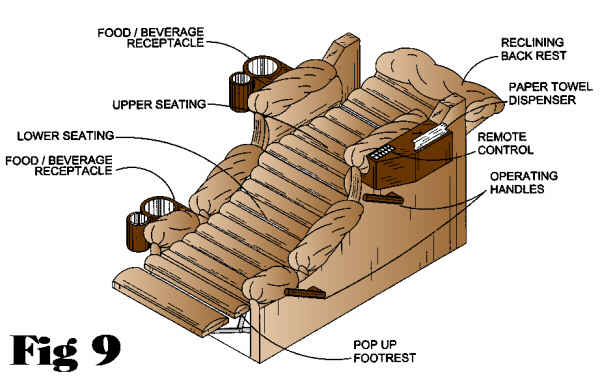

Figure 9 is an isometric view of the present invention showing the present invention with the reclining backrest down and the pop up footrest out. Also shown is an operating handle that controls the reclining backrest and pop up footrest.

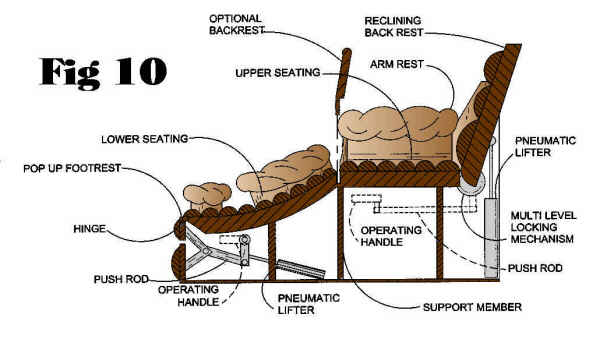

FIGURE 10

Figure 10 is a sectional side view of the present invention showing one possible frame construction for the present invention having an extendable retractable footrest, selectively adjustable backrest and an optional backrest for the lower seat.

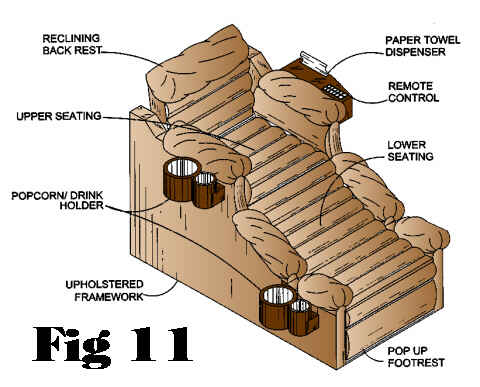

FIGURE 11

Figure 11 is an isometric view of the present invention showing the installed optional backrest.

FIGURE 12

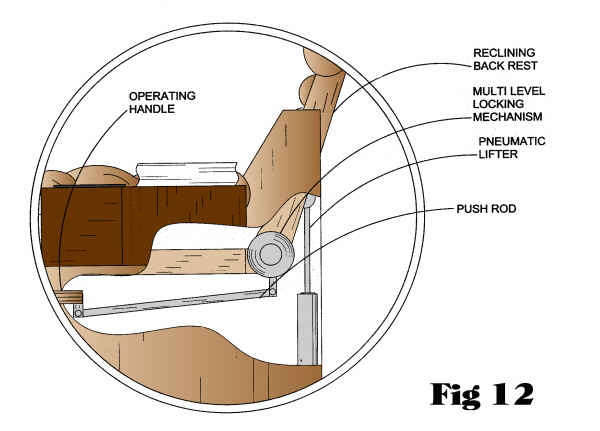

Figure 12 is a cut away view of the present invention showing the internal components of the reclining components of the reclining backrest in the upright position.

FIGURE 13

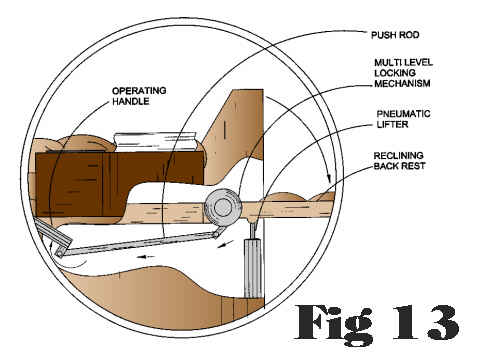

Figure 13 is a cut away view of the present invention showing the internal components of the reclining backrest in the reclined position. Also shown are arrows to show the movements that the functional components make when transferring from the upright to the reclined position.

FIGURE 14

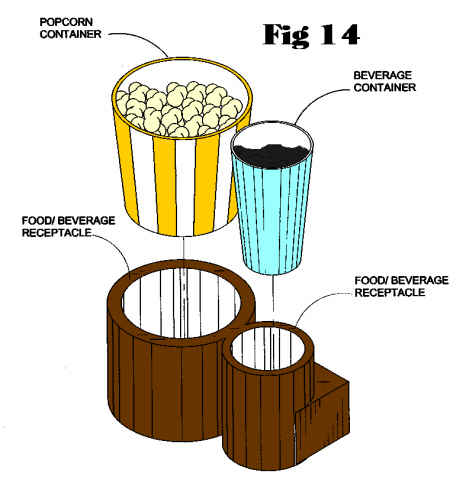

Figure 14 is an isometric view of one of the food and beverage receptacles showing a popcorn container and beverage inserted therein.
