| Furniture Saver Screens & Extendable Retractable Furniture Saver Covers |
Keep Your Pets From Scratching & Chewing Furniture, Molding, Wood Products & Climbing Stairs!
*****New Product For Sale or Licensing*****
| The following patents are currently for sale or license by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page. |
|
|
U.S. Patents : Application Allowed & Pending
Inventor : Catherine Rawlings
|
As attorney for the inventor of the innovative new Furniture Saver Screens & Furniture Saver Covers we are currently seeking investors and manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.
The new Furniture Saver Screen displayed herein relates generally to devices that protect furniture and, more specifically, to furniture saver panels positioned on the exterior of a furniture piece to be protected from pets clawing and chewing on the furniture having base supports and channeled panels for varying the dimensions of the furniture area covered. The furniture saver panels have fasteners whereby a plurality of panels can be pivotally linked to cover corners and longer lengths of furniture.
The new Furniture Saver Cover also displayed herein relates generally to furniture covering and, more specifically, to a protective cover for furniture from pet hair, dander and dirt. The cover is contained within a housing in a rolled state so that it can be easily extended and retracted as desired. Furthermore, the cover has at least one transverse pocket within the body of the cover containing a rigid member that can be tucked between the seat and back rest to keep the cover taut and prevent casual displacement during use. Also provided is a weighted leading edge that will keep the cover taut on the seat and front of the furniture.
|
Furniture Saver Screens:
"I have had many cats and decided to declaw 3 of them. What a horrible thing to do! But, they were ruining my furniture, especially at the corners. I tried everything - squirting with water, attaching tape, putting large items in front of the corners (looked terrible), buying several scratching posts (expensive, ineffective, and brought the cats TO the furniture). Nothing worked. So I declawed. But there is a way to keep a cat's claws and protect the furniture. I found that covering the corners with my screens not only keeps the cats away, but are actually nice to look at and sturdy because of the removable feet to balance them. Plus, the screens expand upward depending on the size of the furniture and can attach to each other if a longer area needs protection.
My neighbor's dog, a Bernese Mountain Dog, decided to go to town chewing her wall molding and the wood on the deck. My dog, Elmer, chewed the molding around a bay window that had a seat in front of it. My screens keep the dogs away, are freestanding and then fold up to be put away if company comes over.
The screens can also be put at the bottom or top of staircases to keep your pets where you want them. If your cats are climbing window screens, they can be positioned on the windowsill or in front of the open patio door."
Furniture Saver Covers:
"How many loads of wash have you done over the years for blankets or couch and loveseat covers because your pet slept, spit up or jumped on the furniture? It's destructive to the washing machine, dryer, furniture and it's a waste of time. You have to shake everything out, get hair all over you and use additional water and electricity to run the washer and dryer. My furniture saver covers save time. They are easy to clean and keep the pet hair out of your appliances. Plus, the material can actually repel the animals desire to stay on the furniture."
| Invention Objects & Goals |
| Furniture Saver Cover |
Furniture Saver Screen |
- to provide a protective cover for furniture from pet hair, dander and dirt
- to provide a furniture cover that provides a cover contained within a housing in a rolled state so that it can be easily extended and retracted as desired
- to provide a furniture cover having at least one transverse pocket within the body of the cover containing a rigid member that can be tucked between the seat and back rest to keep the cover taut and prevent casual displacement during use
- to provide a furniture cover with a weighted leading edge that will keep the cover taut on the seat and front of the furniture
|
- to provide furniture saver panels that protect furniture from harmful pet activities such as biting and scratching
- to provide furniture saver panels positioned on the exterior of a furniture piece to be protected from pets clawing and chewing on the furniture
- to provide furniture saver panels having base supports and channeled panels for varying the dimensions of the furniture area covered
- to provide furniture saver panels that have fasteners whereby a plurality of panels can be pivotally linked to cover corners and longer lengths of furniture
- to provide furniture saver panels that can be used alternatively to prevent pets from: going up stairs, climbing on window sills and screens, entering certain rooms in a house and more
|
| Patent Drawings (Furniture Screen) |
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 furniture save panel system |
26 wall |
| 12 corner panel |
28 prior art |
| 14 clip-on base support |
30 hook fastener |
| 16 channel extension panel |
32 panel section of 12 |
| 18 furniture article |
34 base channel |
| 20 cat |
36 post fastener element |
| 22 scratch marks |
38 loop fastener element |
| 24 dog |
40 additional panel
|
|
 |
| FIGURE 1 FIGURE 1 is an illustrative view of prior art 28. Owners of cats 20 and other clawed animals know from experience that their clawed pets (especially cats) sharpen their claws by scratching them on any object available, usually a corner of furniture 18, resulting in damage from the scratch marks 22 to the furniture. Additionally dogs 24 can be just as destructive in the chewing of walls 26, molding and furnishings the present invention over comes this problem by providing a freestanding selectively placeable screen device for protecting furniture from pet damage such as clawing, scratching or chewing. When not in use the present invention may also fold flat for storage.
|
 |
| FIGURE 2 FIGURE 2 is an illustrative view of the present invention in use. The present invention is furniture saver panel system 10 based around a plurality of corner panels 12 positioned on the exterior of a furniture piece 18 to be protected from pets clawing and chewing thereon having clip-on base supports 14 and channeled extension panels 16 for varying the dimensions of the furniture area covered. The furniture saver panels 12 have hook fasteners 30 whereby a plurality of panels can be pivotally linked to cover corners and longer lengths of furniture.
|
 |
| FIGURE 3 FIGURE 3 is a perspective view of the present invention 10. Shown is a corner panel 12 having two panel sections 32 with each comprising channeled extendible panels 16 stowed therein. The two corner panel sections 32 are permanently fastened to each other by hook fasteners 30 that allow them to be stored flat when not in use. The base supports 14 are removably inserted into base channels 34. A pair of post fastener elements 36 are disposed on the outside edge of one corner panel section 32 and a pair of loop fastener elements 38 on the side edge of the other.
|
 |
| FIGURE 4 FIGURE 4 is a perspective view of the present invention 10. Shown is the corner panel 12 having two panel sections 32, each having a channeled extension panel 16 with one stowed within the channel and the other shown extended. The base supports 14 are installed. The device is positioned on the exterior of a furniture piece to be protected from pets clawing and chewing on the furniture and having base supports. The channeled extension panels 16 provide for varying the dimensions of the furniture area covered.
|
 |
| FIGURE 5 FIGURE 5 is a front view of the present invention 10. Shown is the corner panel 12 having two panel sections 32, each having a channeled extension panel 16 with one stowed within the channel and the other shown extended. The base supports 14 are installed. The device is positioned on the exterior of a furniture piece to be protected from pets clawing and chewing on the furniture and having base supports. The channeled extension panels 16 provide for varying the dimensions of the furniture area covered. Also shown are the opposing post fastener elements 36 and the loop fastener elements 38.
|
 |
| FIGURE 6 FIGURE 6 is a top view of the present invention 10. Shown is the corner panel 12 having two panel sections 32 foldably joined by hook fasteners 30, each having a channeled extension panel 16 with one stowed within the channel and the other shown extended. The base supports 14 are installed. The device is positioned on the exterior of a furniture piece to be protected from pets clawing and chewing on the furniture and having base supports. The channeled extension panels 16 provide for varying the dimensions of the furniture area covered. Also shown are the opposing post fastener elements 36 and the loop fastener elements 38.
|
 |
| FIGURE 7 FIGURE 7 is a front view of the present invention 10 with additional panel 40 about to be attached the corner panel 12 via the post fastener element 36 and the loop fastener element 38. The furniture saver panels have fasteners whereby a plurality of panels can be pivotally linked to cover corners and longer lengths of furniture.
|
 |
| FIGURE 8 FIGURE 8 is a front view of the present invention 10 with additional panel 40 attached to the corner panel 12. The hoop faster elements 36 have been dropped over the post fastener elements 38 to extend the range of protection.
|
|
| Patent Drawings (Furniture Cover) |
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 10 apparatus for protecting furniture |
28 cat |
| 12 cover |
30 dog |
| 14 housing |
32 canvas |
| 16 weighted leading edge |
34 push button retractor |
| 18 pocket |
36 extension pull tab |
| 20 rigid member |
38 spring pulley cam |
| 22 actuator |
40 seat of 26 |
| 24 user |
42 backrest of 26 |
| 26 furniture |
44 bed |
|
 |

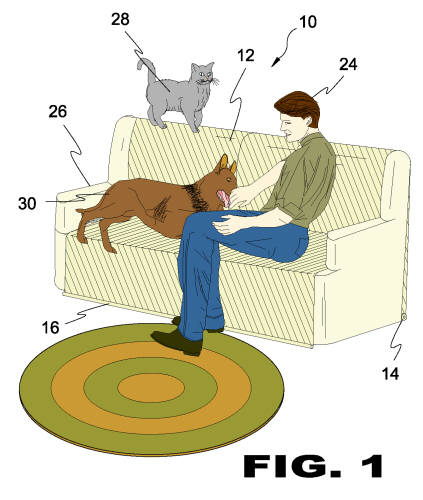

| FIGURE 1 FIGURE 1 is an illustrative view of the present invention 10 in use. The present invention is a protective cover apparatus 10 for furniture from pet hair, dander and dirt. The cover apparatus has a flexible sheet 12is contained within a housing 14 in a rolled state so that it can be easily extended and retracted as desired. Furthermore, the cover has at least one transverse pocket within the body of the cover containing a rigid member that can be tucked between the seat and back rest to keep the cover taut and prevent casual displacement during use. Also provided is a weighted leading edge 16 that will keep the cover taut on the seat and front of the furniture. Shown is the user 24 on a protected couch 26 with a cat 28 and a dog 30.
|
 |

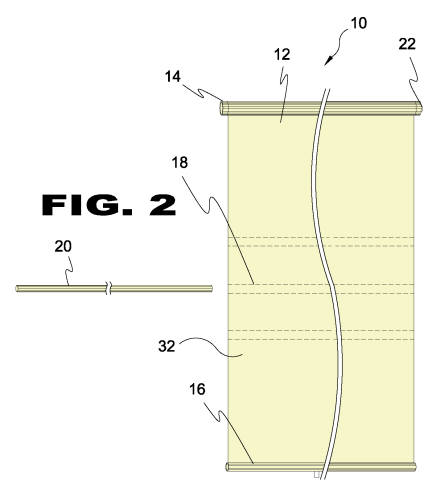

| FIGURE 2 FIGURE 2 is a top view of the furniture protector of the present invention. Shown is a top view of the furniture saver cover 10 extended. The furniture saver cover is similar to a roll-up shade that would drape over furniture from the floor in the back to the floor in the front, having a weighted leading edge 16 and the weight of the housing 14 at the rear edge to hold it in place and a centrally disposed transverse pocket 18 that would enable another rigid member 20 to be inserted and once inserted tucked into the space at the back of the cushions to hold it in place. An actuator 22 is associated with the housing 14 to retract the cover back into the housing when desired. The cover material can be made of canvas 32 to prevent pet hair from clinging to the cover and therefore easily cleaned.
|
 |

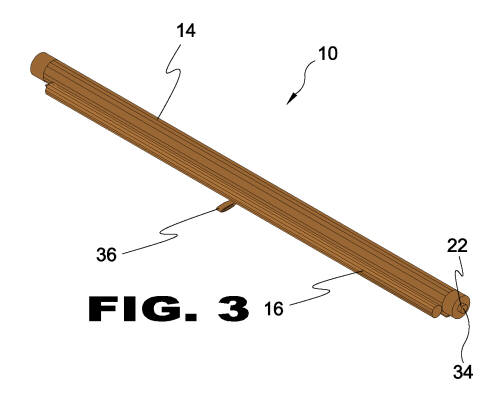

| FIGURE 3 FIGURE 3 is a perspective view of the present invention 10 in a retracted position. Shown is the present invention 10 in a retracted position having a housing 14 containing a rolled cover that is selectively extendible and retractable covering the rear side, back rest and seat portion with a weighted edge 16 for keeping the cover taut when extended. The cover has a stay comprising an appropriately located pocket for receiving a rigid member positionable in the recess between the back rest and seat preventing displacement of the cover when extended. The housing optionally incorporates a base plate positionable under the rear furniture legs anchoring the cover housing in a desired location. Shown is the actuator 22 depicted as a push button retractor 34 and an optional extension pull-tab 36.
|
 |
| FIGURE 4 FIGURE 4 is a perspective view of the present invention 10 in a partially extended position. Shown is the present invention in a partially extended position having a housing 14 containing a rolled cover 12 that is selectively extendible and retractable covering the rear side, back rest and seat portion with a weighted end 16 for keeping the cover taut when extended. The cover has a stay comprising an appropriately located pocket for receiving a rigid member positionable in the recess between the back rest and seat preventing displacement of the cover when extended. The housing optionally incorporating a base plate positionable under the rear furniture legs anchoring the cover housing in a desired location. Shown is the actuator 22 depicted as a push button retractor 34 and an optional extension pull-tab 36.
|
 |

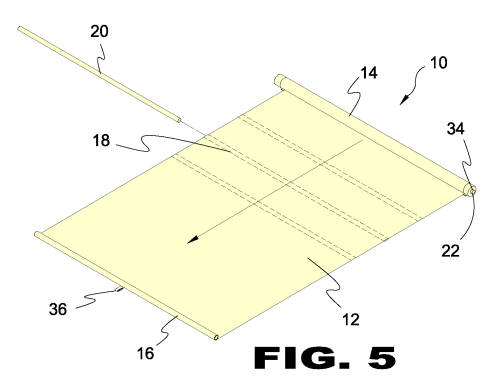

| FIGURE 5 FIGURE 5 is a perspective view of the present invention 10 in an extended position. Shown is the present invention in an extended position having a housing 14 containing a rolled cover 12 that is selectively extendible and retractable covering the rear side, back rest and seat portion having a weighted end for keeping the cover taut when extended. The cover has a stay comprising an appropriately located pocket 18 for receiving a rigid member 20 positionable in the recess between the back rest and seat preventing displacement of the cover when extended. Also shown is the actuator 22 depicted as a push button retractor 34 and an optional extension pull-tab 36.
|
 |

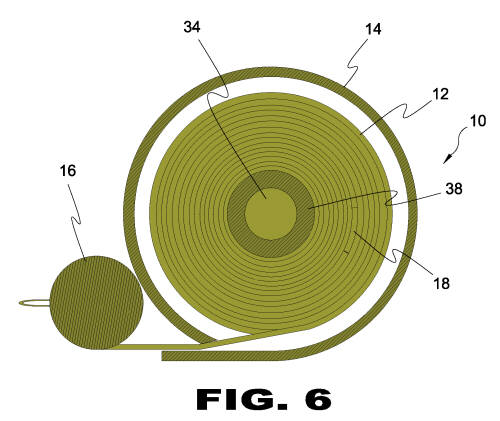

| FIGURE 6 FIGURE 6 is a sectional view of the present invention 10 in a retracted position. Shown is a sectional view of the present invention 10 in a retracted position having a housing 14 containing a rolled cover 12 that is selectively extendible and retractable covering the rear side, back rest and seat portion with a weighted end 16 for keeping the cover 12 taut when extended. The cover 12 has a stay comprising an appropriately located pocket 18 for receiving a rigid member positionable in the recess between the back rest and seat preventing displacement of the cover when extended. A spring pulley cam 38 serves to retract the cover 12 when the push button retractor 34 is depressed.
|
 |

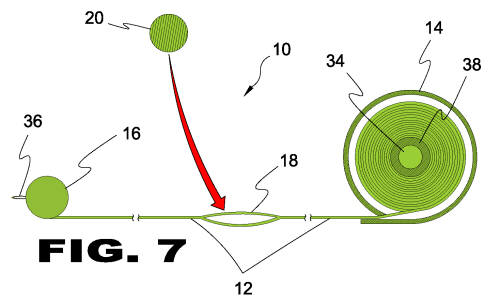

| FIGURE 7 FIGURE 7 is a sectional view of the present invention 10 in an extended position. Shown is a sectional view of the present invention in an extended position having a housing 14 containing a rolled cover 12 that is selectively extendible by pulling the extension pull tab 36 and retractable by pushing the push button retractor 34 to release the spring pulley cam 38. The device is used for covering the rear side, back rest and seat portion of a furniture piece and has a weighted leading edge 16 and the weight of the housing 14 on the rear edge for keeping the cover 12 taut when extended. The cover 12 has a stay comprising an appropriately located pocket 18 for receiving a rigid member 20 positionable in the recess between the back rest and seat preventing displacement of the cover 12 when extended.
|
 |

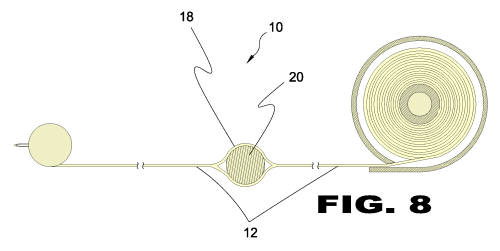

| FIGURE 8 FIGURE 8 is a sectional view of the present invention 10 in an extended position with back rest/seat rigid member 20 within pocket 18. The cover 12 has a stay comprising an appropriately located pocket 18 for receiving a rigid member 20 positionable in the recess between the back rest and seat preventing displacement of the cover 12 when extended.
|
 |

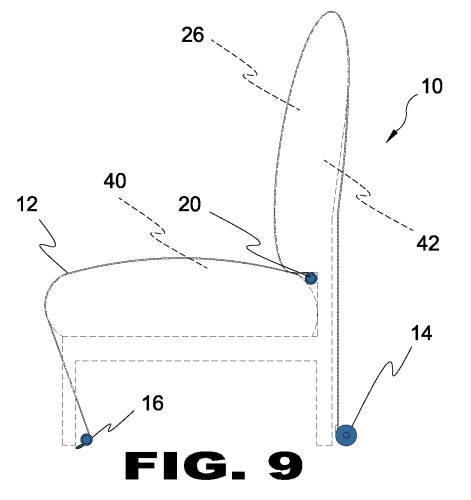

| FIGURE 9 FIGURE 9 is a side view of the present invention 10 in use. Shown is a side view of the present invention 10 in use on a piece of furniture 26. The rigid member 20 is tucked between the seat 40 and the backrest 42 and the cover is pulled taut by the weight lead edge 16 in front and the weight of the housing 14 behind.
|
|
If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty
agreement please contact the office of Michael I. Kroll as follows:
Michael I. Kroll
115 Eileen Way, Suite 105
Syosset, New York 11791
Tel. #: 800-367-7774
Tel. #: 516-367-7777
Fax #: 800-367-7704
Fax #: 516-692-2787
