| Reddy TeddyTM Triple Seal Disposable Baby Bottles |
*****New Product For Sale, Licensing and/or Investors*****
| The following patent is currently for sale by the inventor. If you are interested in making an offer or would like more information please contact the attorney at the numbers listed on the bottom of this page. |
U.S. Patent : # 7,287,657
Click patent number for full text patent document.
Inventor : Ernest L. Rodriguez
|
|
As attorney for the inventor of the innovative Triple Seal Disposable Baby Bottles we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention. Interested parties can reach the attorney at the contact numbers listed at the bottom of this page.
|
Objects of the present invention:
- to provide a baby bottle that is already filled and is disposable
- to provide a baby bottle that is pre-filled with a formula or beverage
- to provide a beautifully designed, easy to open and reseal baby bottle
- to provide a baby bottle with a safe nipple assembly
- to provide a baby bottle having a cap for sealing the nipple to the body of the bottle
- to provide a baby bottle having a cap with a collar-like textured material to aid in the cap removal
- to provide a baby bottle with a nipple assembly having a sealing collar that can be heat bonded onto a pre-filled bottle thereby becoming an integral part thereof
- to provide a baby bottle with a recessed securing ring where a pop off cap may be frictionally connected
- to provide a baby bottle with a triple seal whereas a stationary insert holds the nipple upright and a compression cap presses down on the top and base of the nipple
- to provide a baby bottle having a cover for the nipple formed from a plastic film to ensure that the nipple is sanitary
- to provide a baby bottle having a triple seal pop off cap that produces pressure upon the nipple to seal when the pop off cap is attached to the securing ring
- to provide a baby bottle that is resealable
- to provide a baby bottle with a polymeric security seal to prevent tampering or contamination
- to provide a baby bottle that may be heat-sealed by applying sufficient heat to a sealing collar to melt the collar onto the bottle
- to provide a baby bottle that can contain a beverage bag to prevent introduction of air to a beverage
|
The following pictures are meant to display possible physical characteristics of the present invention and are not to be taken in a limiting sense. It is understood that other embodiments may be utilized and that structural changes may be made without departing from the scope of the invention.
| LIST OF REFERENCE NUMERALS |
| 2 user |
24 flange |
| 4 infant | 25 recess |
| 10 disposable baby bottle |
26 bonding means |
| 12 bottle | 28 distance |
| 14 cap |
30 opening |
| 15 textured material | 32 liner |
| 16 securing collar |
34 suspension element |
| 18 annular ring | 36 beverage |
| 19 annular channel |
38 skirt flange |
| 20 nipple | 40 stationary insert |
| 22 compression cap |
|
|
| PATENT DRAWINGS |
 |

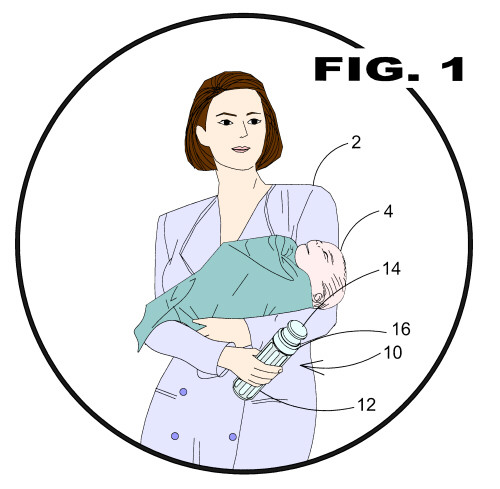

| FIGURE 1 Figure 1 is an illustrative view of the disposable baby bottle of the present invention. |
 |

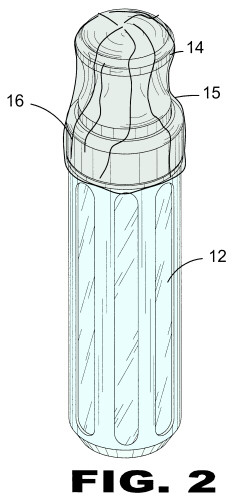

| FIGURE 2 Figure 2 is a perspective view of the disposable baby bottle of the present invention.
|
 |

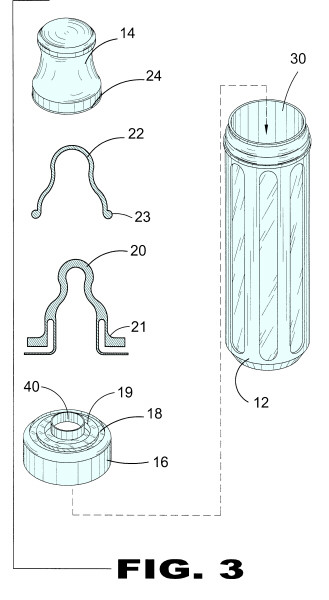

| FIGURE 3 Figure 3 is an exploded view of the disposable baby bottle of the present invention. |
 |

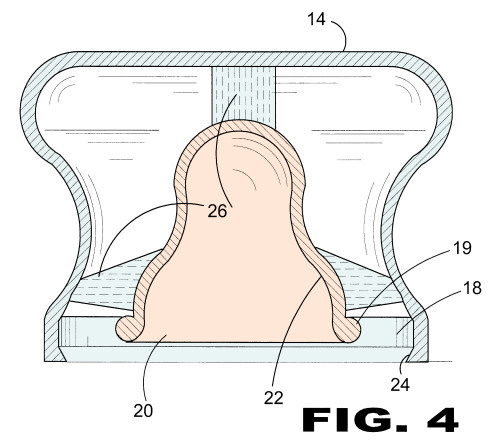

| FIGURE 4 Figure 4 is an enlarged sectional view of the outer cap of the disposable baby bottle of the present invention. |
 |
| FIGURE 5 Figure 5 is a cross-sectional view of the nipple and interior compression top of the disposable baby bottle of the present invention. |
 |

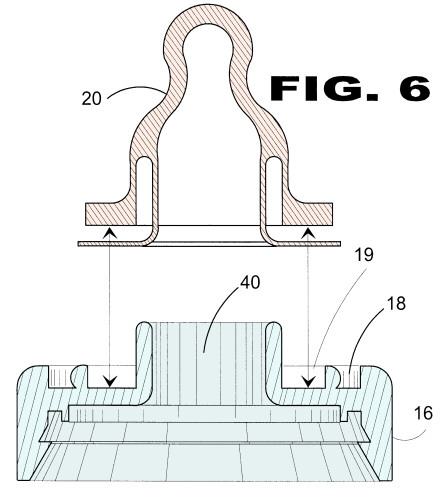

| FIGURE 6 Figure 6 is an exploded view of the nipple and securing collar of the disposable baby bottle of the present invention. |
 |

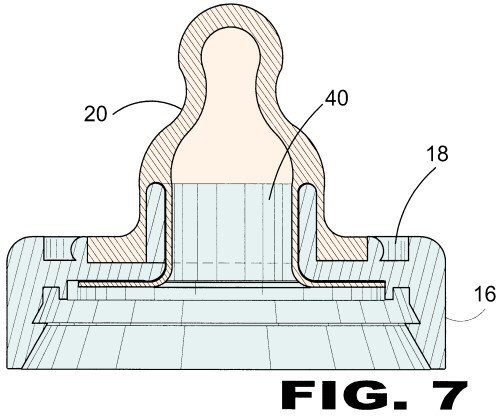

| FIGURE 7 Figure 7 is a cross-sectional view of the nipple and securing collar of the disposable baby bottle. |
 |

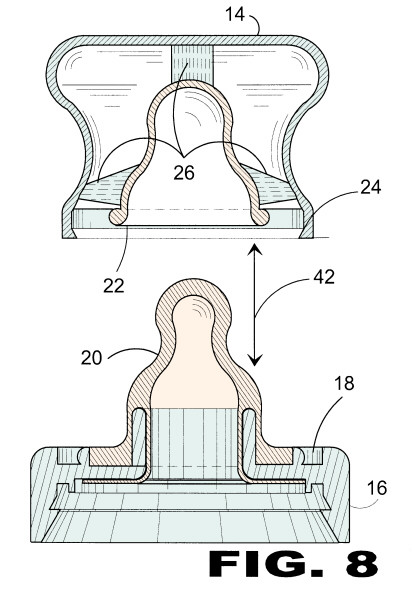

| FIGURE 8 Figure 8 is an exploded sectional view of the nipple and cap assembly. |
 |

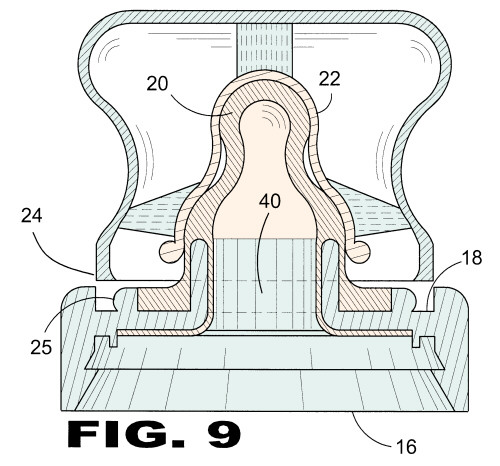

| FIGURE 9 Figure 9 is a cross-sectional view of the nipple and cap assembly. |
 |

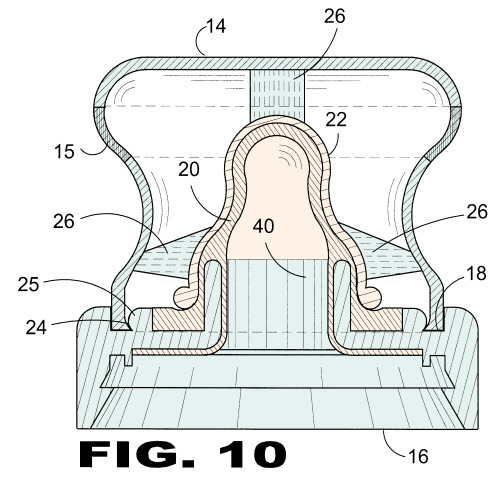

| FIGURE 10 Figure 10 is a cross-sectional view of the nipple and cap assembly of the disposable baby bottle. |
 |

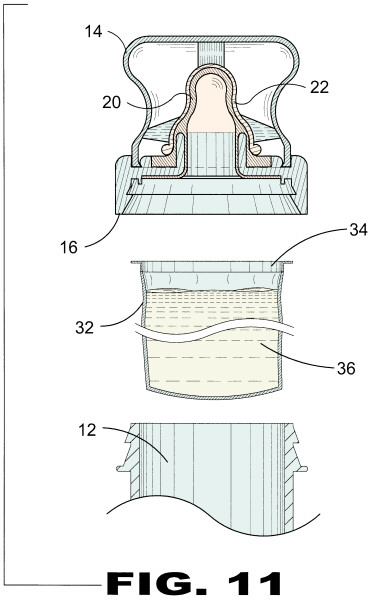

| FIGURE 11 Figure 11 is a cross-sectional view of the disposable baby bottle of the present invention. |
 |

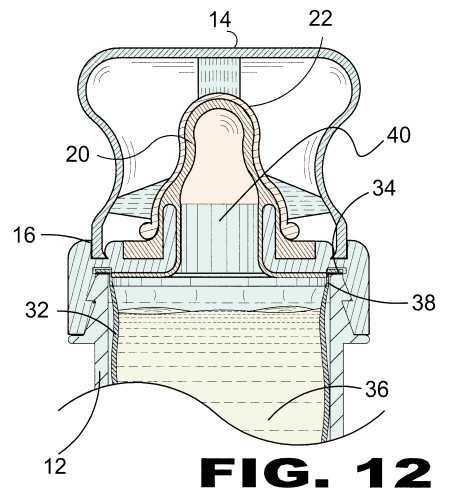

| FIGURE 12 Figure 12 is a cross-sectional view of the disposable baby bottle of the present invention fully assembled. |
|
If you are interested in licensing, purchasing the rights to the above invention or entering into a royalty
agreement please contact the office of Michael I. Kroll as follows:
