| Extendible P-Trap with Dishwasher Waste Port |
***New Product For Licensing, Manufacturing, and/or Investors***
As attorney for the inventor of the innovative Extendible P-Trap with Dishwasher Waste Port we are currently seeking manufacturing companies to license, purchase patent rights or enter into a royalty agreement for this timely invention.

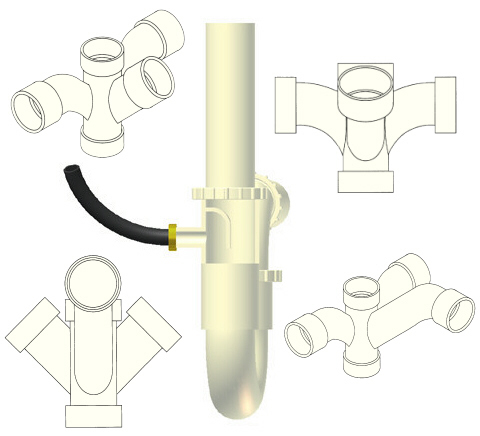

The Extendible P-Trap with Dishwasher Waste Port is for commercial and residential plumbing systems. The p-trap has an enlarged outlet portion to receive a drainpipe and has a threaded port to receive a pressure hose for a dishwasher waste line. Also disclosed is a deflection shield disposed in operative connection to the threaded port so as to direct waste water downwardly away from the sink. The present invention further includes a plurality of multiport PVC pipe fittings in various configurations to provide greater flexibility when plumbing.
Objects of the present invention:
- to provide a p-trap for sink applications having a threaded port for receiving a pressure hose from a dishwasher waste line
- to provide a p-trap that is extendible thereby allowing a plumber to compensate for an incorrectly roughed-in drainpipe
- to provide a p-trap with a dishwasher waste line port wherein the p-trap has an interior deflection shield to direct the effluence from the dishwasher waste line downward and prevent it from splashing back into the sink
- to provide a three way combination pipe fitting for use in roughing-in 2 bathrooms back to back with its own stack for 2 sinks or 1 sink and 1 urinal as well as other rough-ins
- to provide a variety of basic modified plumbing fittings
- to provide an extendible p-trap with a dishwasher waste port and modified pipefittings that are economical in cost to manufacture
Now for the first time this unique product is available for millions of potential users.
| LIST OF REFERENCE NUMERALS |
| 10 present invention |
34 drainpipe lock nut |
| 12p-trap | 36 water supply line |
| 14 dishwasher |
38 faucet |
| 16dishwasher outlet line | 40 handle |
| 18 kitchen sink |
42 sink drain |
| 20drainpipe | 44 slip nut |
| 22 dishwasher outlet line connector |
46 drainpipe extension fitting |
| 24deflection shield | 48 threads |
| 26 drainpipe extension |
50 waste water |
| 28tailpiece | 52 2-way inlet |
| 30 tailpiece lock nut |
54 2-way inlet |
| 32countertop | 56 Y-inlet |
|
| PATENT DRAWINGS |
 |

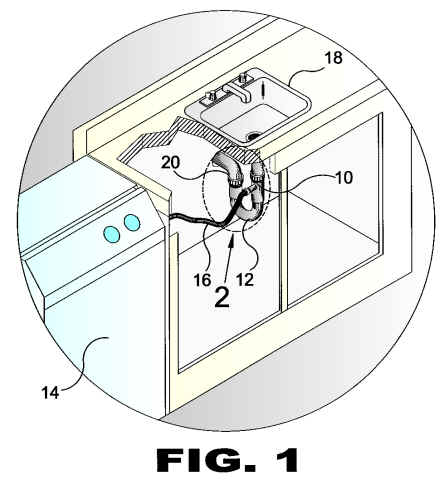

| FIGURE 1 Figure 1 is a perspective view of the present invention in use. |
 |

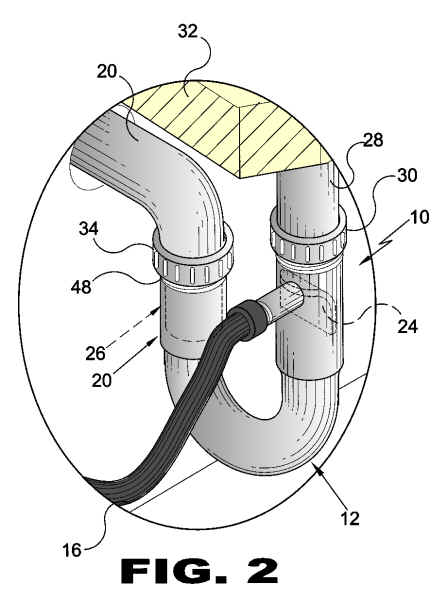

| FIGURE 2 Figure 2 is a detailed view of the invention in use taken from figure 1 as indicated. |
 |

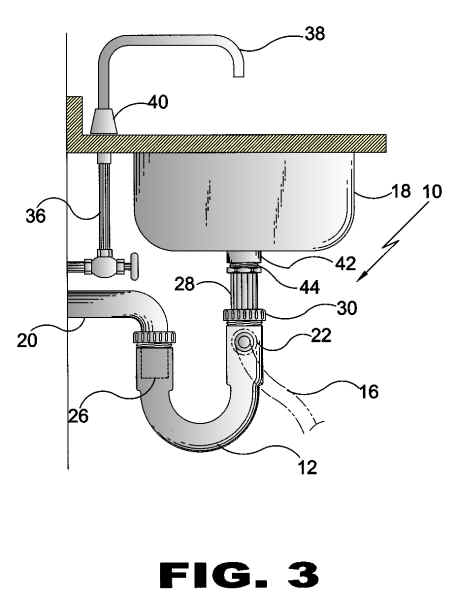

| FIGURE 3 Figure 3 is a side view of the present invention in use. |
 |

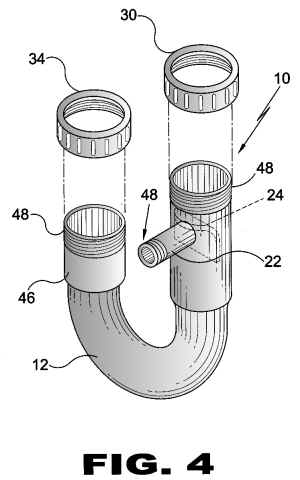

| FIGURE 4 Figure 4 is an exploded view of the present invention. |
 |

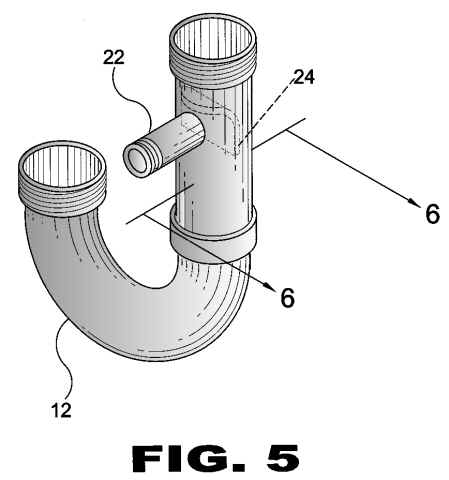

| FIGURE 5 Figure 5 is a perspective view of the invention with the threaded dishwasher waste port and no extension option on the p-trap. |
 |

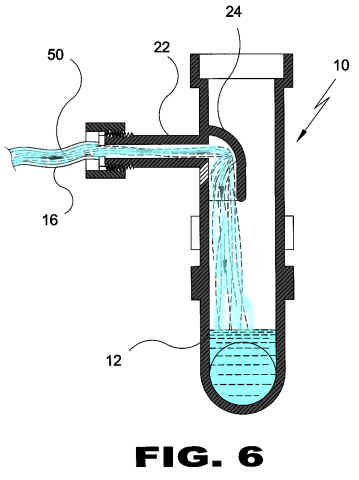

| FIGURE 6 Figure 6 is a cross-sectional side view of the present invention taken from figure 5 as indicated. |
 |

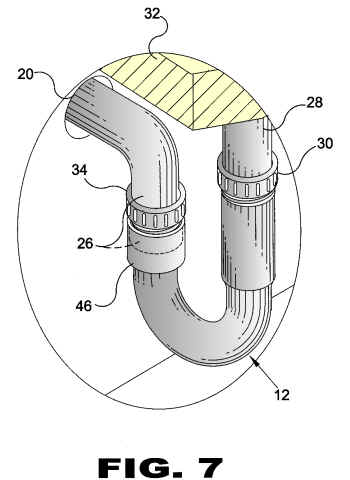

| FIGURE 7 Figure 7 is a perspective view of the present invention having an extendible p-trap and no dishwasher waste port. |
 |

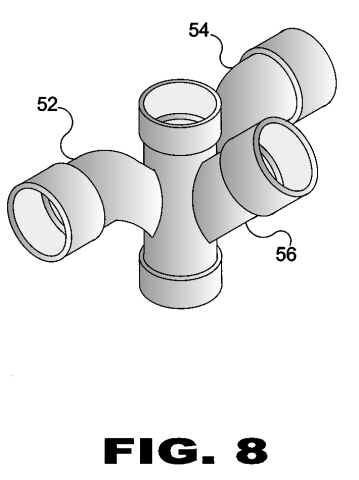

| FIGURE 8 Figure 8 is a perspective view of a two-way combination fitting with a Y-inlet. |
 |

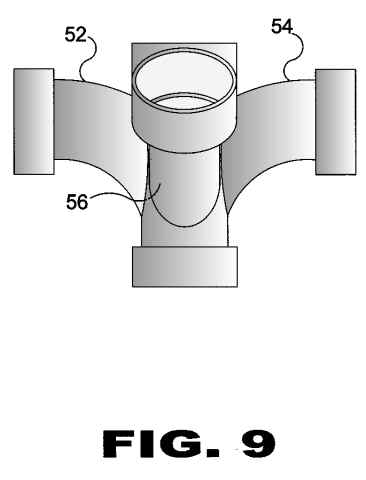

| FIGURE 9 Figure 9 is a front view of a two-way combination fitting with a Y-inlet. |
 |

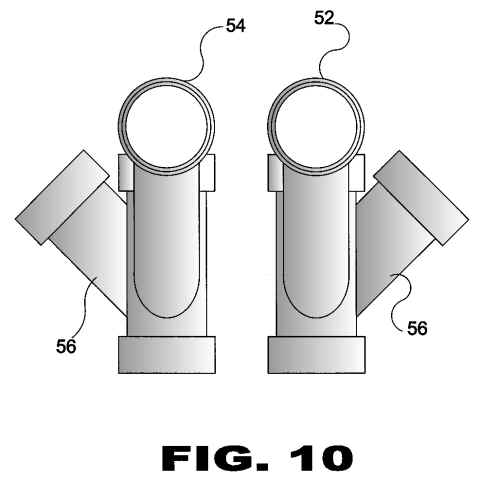

| FIGURE 10 Figure 10 is a side view of a Y-fitting with a combination. |
 |

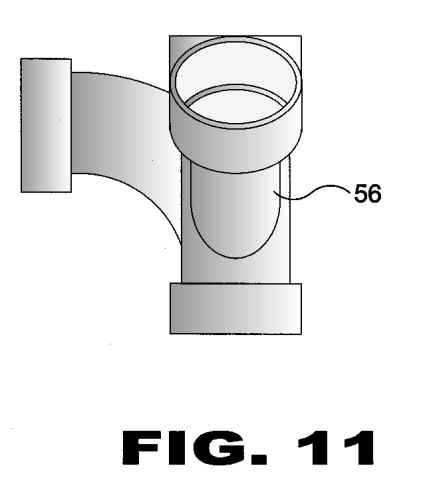

| FIGURE 11 Figure 11 is a front view of a Y-fitting with a combination. |
 |

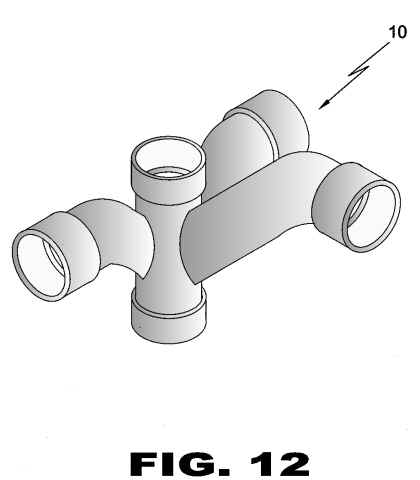

| FIGURE 12 Figure 12 is a perspective view of a three way combination fitting. |
 |

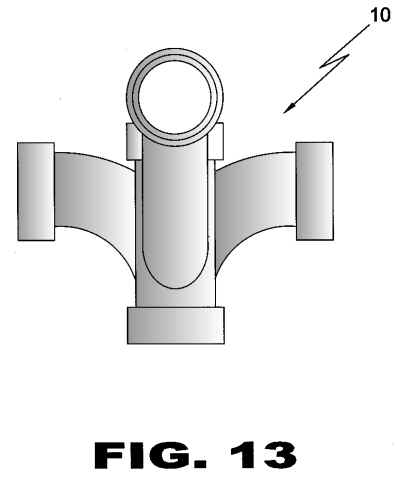

| FIGURE 13 Figure 13 is a perspective view of a three way combination fitting. |
 |

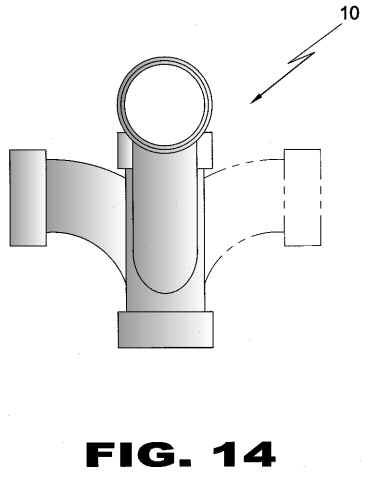

| FIGURE 14 Figure 14 is a front view of a left combination fitting with the placement of a right combination shown in phantom line. |
 |

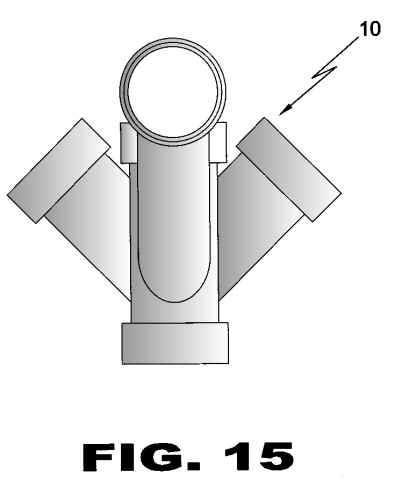

| FIGURE 15 Figure 15 is a front view of a double-Y fitting with a combination. |
|
